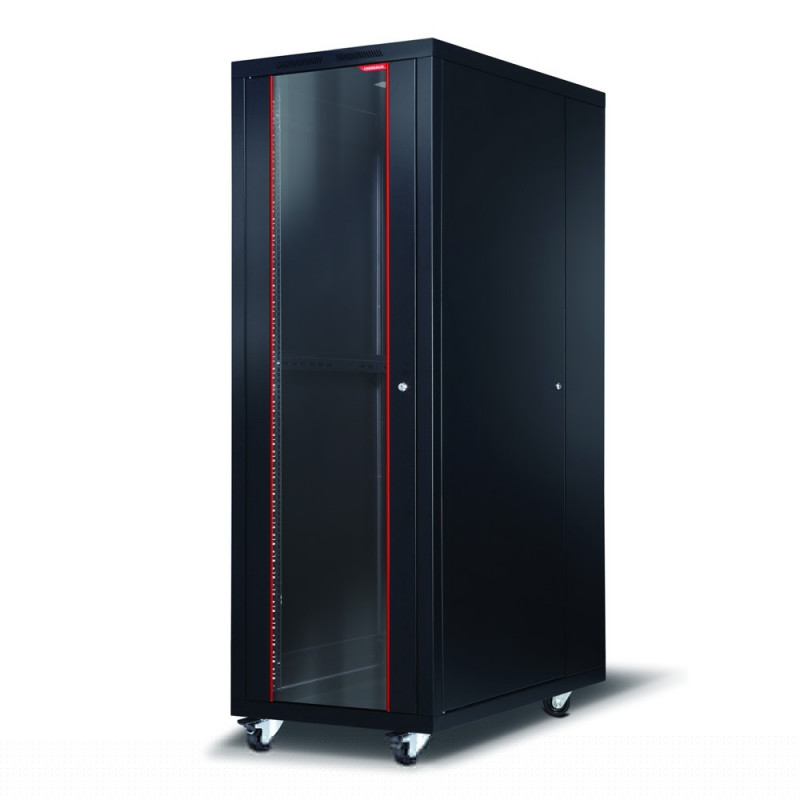

Formrack 19" Free standing rack 36U 600/1000mm, height: 1831 mm, loading capacity: 600 kg, front tempered glass door, openable l

Техническо описание

Тип

Free standing

Цвят

Black (impact-resistant,high strength, electrostatic Ral 9005 texture black color)

Тегло, kg

103 kg

Други

At the bottom part of the cabinets, there is a sliding and dust-protected brushed cable entry. In 600x1000 cabinets, these entries are available in two locations, from bottom to top.

Модел

Комуникационен шкаф

Стандарти

ROSH, CE, EN 61587-1

Форм-фактор

36U

Включени аксесоари

4x 19” mounting profiles and these profiles can move deep within the cabinet. Does not include castor/feet group (It has the option of using wheeled and fixed legs). Mounting profiles have U markings that facilitate the mounting process.

Размер, inch

19"

Широчина, mm

600 mm

Дълбочина, mm

1000 mm

Височина, mm

1831 mm

Вътрешни размери, mm

Inside Height: 1603 mm

Максимален товар, kg

600 kg

Предни врати, тип

Tempered glass (4 mm thick, impact-resistant, tempered and smoked-colored glass which is supported by metal frames)

Странични панели

Openable, lockable and easily removable covers, made by DKP sheet (1.2 mm steel). The main frame is 1.5 mm. The frame and corner profiles have nested structure.

Заден панел

Openable, lockable and easily removable, made by DKP sheet (1.2 mm steel)

Заключване

Four sides

Брой секции

Single-section

Слот за вентилатори

Ventilation is provided by cooling units with 2,4 or 6 fans

Конкретни референции
