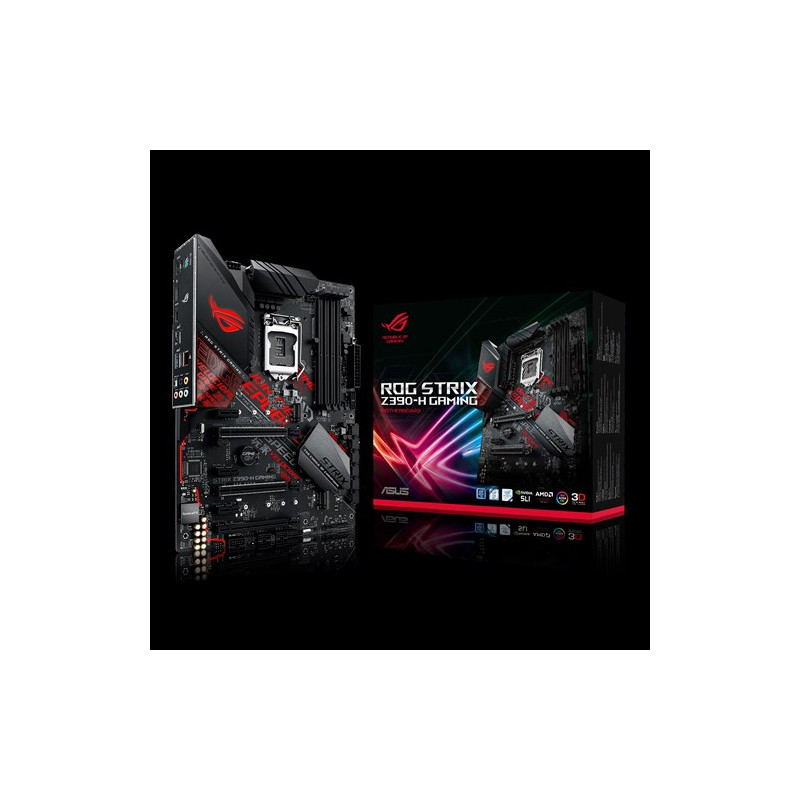

ASUS ROG STRIX Z390-H GAMING

464,28 лв.
С вкл. данък
Z390 4xDDR4 6xSATA3 RAID HDMI DP 2xM2 GLAN 3xPCIEx16 3xPCIEx1
Asus
90mb0yu0-m0eay0

ASUS ROG STRIX Z390-H GAMING

Техническо описание

Warranty
36 Months
Процесор
Intel Socket 1151 9th / 8th Gen Intel Core™, Pentium Gold and Celeron Processors , Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 ,The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Тип
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered, Register Memory , Dual Channel Memory Architecture , Sup
LAN
Intel I219V, Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY), Anti-surge LANGuard, ROG GameFirst Technology
Чипсет
Intel Z390
Видео адаптер
Integrated Graphics Processor- Intel HD Graphics support , Multi-VGA output support : HDMI/DisplayPort ports , - Supports HDMI 1.4b with max. resolution 4096 x 2304 @ 24 Hz / 3840 x 2160 @ 30 Hz, - Supports DisplayPort with max. resolution 4096 x 2304 @ 6
Форм фактор
ATX
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A: - Dual OP Amplifiers, - Impedance sense for front and rear headphone outputs, - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback o
Размер на флаш памет
Intel Z390 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA mode - X4 PCIE mode), 6 x SATA 6Gb/s port(s), Support
I/O
1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.1 Gen 2 Type-A, 2 x USB 3.1 Gen 1 , 1 x Optical S/PDIF out, 5 x Audio jack(s)
Expansion Slots
Socket 1151 for 9th / 8th Gen Intel Core™, Pentium Gold and Celeron processors: 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) , Intel Z390 Chipset: 1 x PCIe 3.0/2.0 x16 (x2 mode) , 3 x PCIe 3.0/2.0 x1
OS
MS Windows
Connectors
1 x AAFP connector, 1 x Aura RGB Strip Header, 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) , 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/2
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1.
CPU сокет
1151
