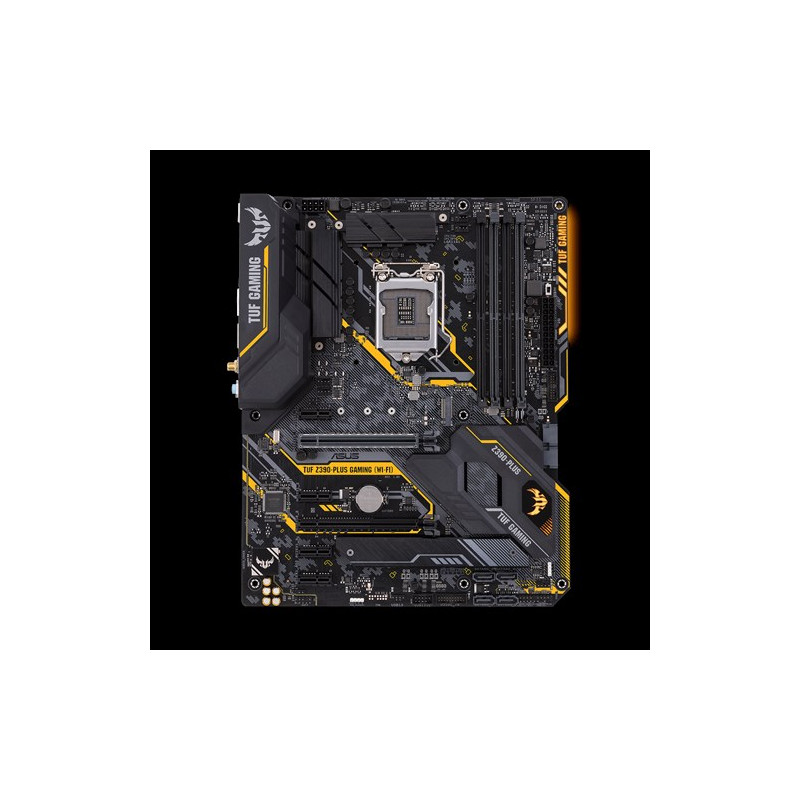

ASUS TUF Z390-PLUS GAMING WI-F

385,13 лв.
С вкл. данък
ASUS Z390 4xDDR4 6xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 4xPCIEx1 WiFi
Asus
90mb0z90-m0eay0

ASUS TUF Z390-PLUS GAMING WI-F

Техническо описание

Warranty
36 Months
Процесор
Intel Socket 1151 9th / 8th Gen Intel Core™, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 3.0
Тип
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered MemoryDual Channel Memory Architecture, Suppor
LAN
Intel I219V, featuring Turbo LAN, TUF LANGuard, Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
Чипсет
Intel Z390
Видео адаптер
Integrated Graphics Processor- Intel UHD Graphics support, Multi-VGA output support : HDMI/DisplayPort ports, - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz, - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Supports Intel InTru™
Форм фактор
ATX
Audio
Realtek ALC S1200A 8-Channel High Definition Audio CODEC, - Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : - Exclusive DTS Custom for GAMING Headsets., - Audio Shielding: Ensures precision analog/digital separation and greatly redu
Other
Intel Wireless-AC 9560, Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO, Supports channel bandwidth: HT20/HT40/HT80/HT160, Bluetooth 5.0
Размер на флаш памет
Intel Z390 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA - PCIE 3.0 x 4 mode)2, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA - PCIE 3.0 x 4 mode)3, 6 x SATA 6Gb/s port(s),
I/O
1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 2 Type-A,,4 x USB 3.1 Gen 1 Type-A,,2 x Wi-Fi antenna port(s), 3 x 8-channel Audio I/O
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4), 1 x PCIe 3.0/2.0 x16 (max at x4 mode) 1, 4 x PCIe 3.0/2.0 x1 1, For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
OS
MS Windows
Connectors
2 x Aura RGB Strip Header(s), 2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s),1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence
CPU сокет
LGA1151
