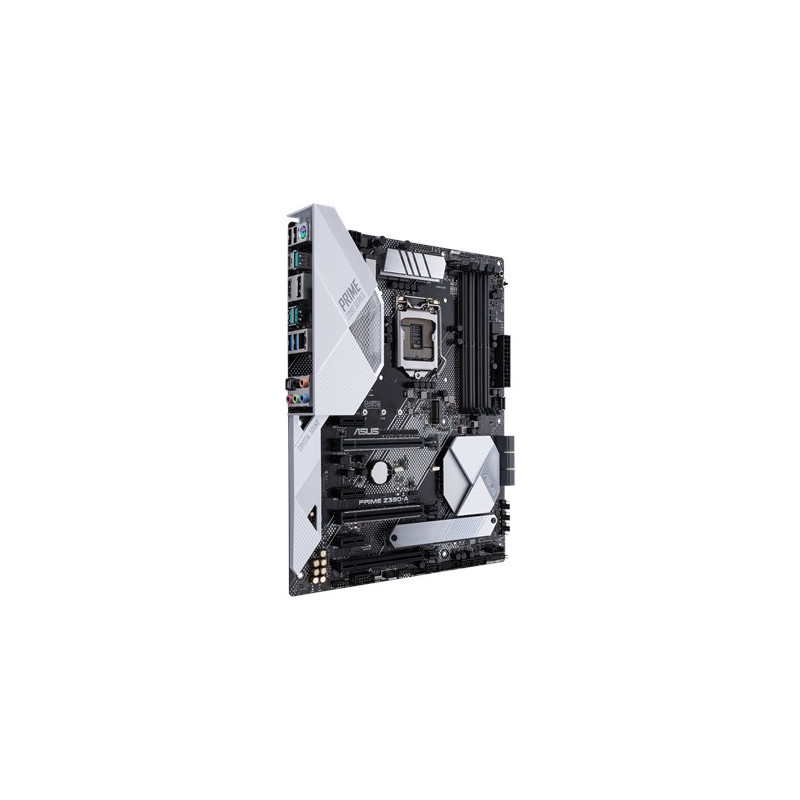

ASUS PRIME Z390-A-42251
  • ASUS PRIME Z390-A-42251
  • ASUS PRIME Z390-A-42252
  • ASUS PRIME Z390-A-42253

ASUS PRIME Z390-A

426,22 лв.
С вкл. данък
ASUS Z390 4xDDR4 6xSATA3 RAID HDMI DP 2xM2 GLAN 3xPCIEx16 3xPCIEx1
Asus
90mb0yt0-m0eay0

ASUS PRIME Z390-A

Техническо описание

Warranty
36 Months
Процесор
Intel Socket 1151 for 9th / 8th Generation Pentium/Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0
Тип
4 x DIMM, Max. 64GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture, Sup
LAN
Intel I219V, 1 x Gigabit LAN Controller(s), ASUS Turbo LAN Utility, ASUS LAN Guard
Чипсет
Intel Z390
Видео адаптер
Integrated Graphics Processor- Intel HD Graphics support, Multi-VGA output support : HDMI/DVI-D ports, - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz, - Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz, Maximum shared memory of
Форм фактор
ATX
Audio
Realtek ALC S1220A 8-Channel High Definition Audio CODEC featuring Crystal Sound 3, - Power pre-regulator reduces power input noise to ensure consistent performance, - Impedance sense for front and rear headphone outputs, - Internal audio Amplifier to enh
Размер на флаш памет
Intel Z390 Chipset :1 x M.2 Socket 3, , with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode), 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA - PCIE 3.0 x 4 mode)5, 6 x SATA 6Gb/s port(s), gray,
I/O
1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 3 x USB 3.1 Gen 2 (teal blue)Type-A,,1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.1 Gen 1 (blue) Type-A, 2 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s)
Expansion Slots
1 x PCIe 3.0/2.0 x16 (max at x4 mode) 4, 3 x PCIe 3.0/2.0 x1,For 2 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_2 slot, enable this card under BIOS settings.,For 3 SSD on CPU support, install a Hyper M.2 X16 card (so
OS
MS Windows
Connectors
2 x Aura RGB Strip Headers, 1 x USB 3.1 Gen 1 front panel TypeC™ connector, 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s), 1 x M.2 Socket 3 with
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 AI OC Guide, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detec
CPU сокет
LGA1151

Конкретни референции
