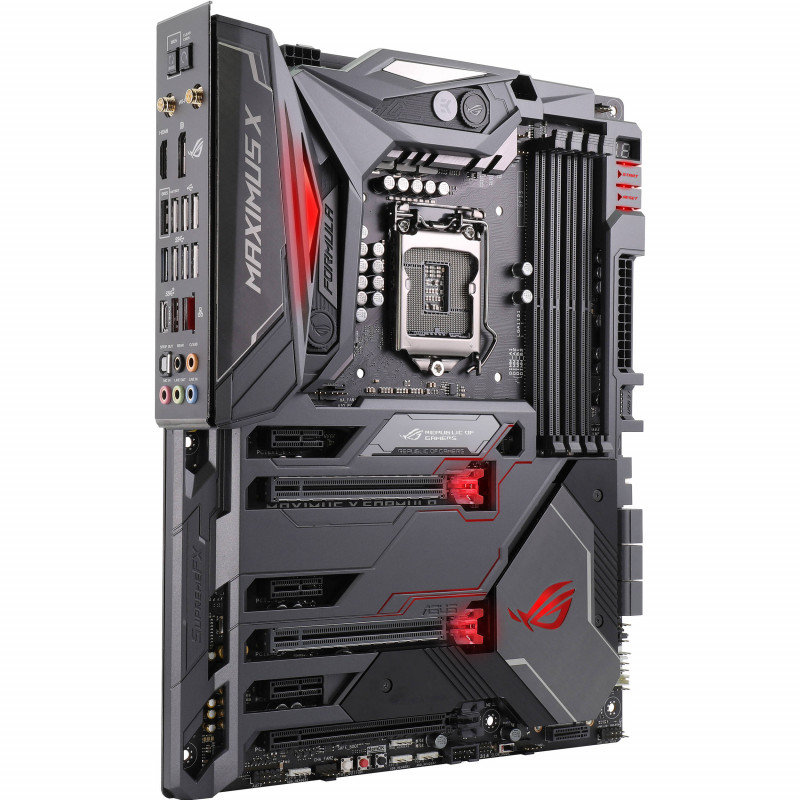

ASUS MAXIMUS X FORMULA / 1151

753,00 лв.
С вкл. данък
ASUS Z370 4xDDR4 6xSATA3 RAID HDMI DP 2xM2 GLAN 3xPCIEx16 3xPCIEx1 WiFi
Asus
90mb0vn0-m0eay0

ASUS MAXIMUS X FORMULA / 1151

Техническо описание

Warranty
36 Months
Процесор
Intel Socket 1151 for 8th Generation Core™ Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0,The Intel Turbo Boost Technology 2.0 support depends on the CPU types.Refer to www.asus.com for CPU support list
Тип
4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture, Su
LAN
Intel I219V, Anti-surge,LANGuard ROG GameFirst IV
Чипсет
Intel Z370
Видео адаптер
Integrated Graphics Processor: Multi-VGA output support : HDMI/DisplayPort 1.2 ports,- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz, - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz, Maximum shared memory of 1024 MB
Форм фактор
ATX
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220, - Impedance sense for front and rear headphone outputs, - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback output and 113 dB SNR re
Other
Wi-Fi 802.11 a/b/g/n/ac, Supports dual band frequency 2.4/5 GHz, Supports MU-MIMO,Bluetooth V4.2
Размер на флаш памет
Intel Z370 Chipset :1 x M.2 Socket 3, with M Key, type 2242/2260/2280/22110 storage devices support (both SATA - PCIE mode)2, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)3, 6 x SATA 6Gb/s port(s), Sup
I/O
1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.1 Gen 2 (red)Type-A, 1 x USB 3.1 Gen 2 (black)USB Type-CTM, 4 x USB 3.1 Gen 1 (blue), 4 x USB 2.0, 1 x Optical S/PDIF out, 5 x Audio jack(s), 1 x Clear CMOS button(s), 1 x USB BIOS Flashback But
Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16, x8/x8, or x8/x4+x4), 1 x PCIe 3.0/2.0 x16 (x4 mode, black) 1, 3 x PCIe 3.0/2.0 x1
OS
MS Windows
Connectors
2 x Aura Addressable Strip Header, 2 x Aura RGB Strip Headers, 1 x USB 3.1 Gen 1 connector support additional 2 USB 3.1 Gen 1 port, 1 x USB 2.0 connector support additional 2 USB 2.0 port, 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage dev
BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and
CPU сокет
LGA1151
