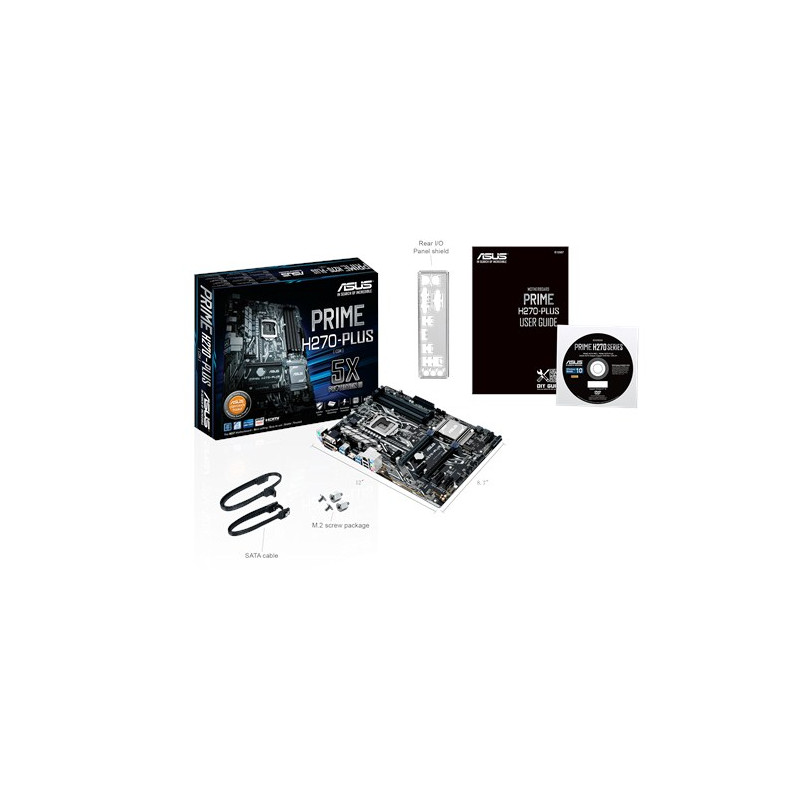

ASUS PRIME H270-PLUS

202,96 лв.
С вкл. данък
ASUS H270 4xDDR4 6xSATA3 RAID HDMI DVI VGA 2xM2 GLAN 2xPCIEx16 4xPCIEx1
Asus
90mb0s90-m0eay0

ASUS PRIME H270-PLUS

Техническо описание

Warranty
36 Months
Процесор
Intel Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium/Celeron Processors,Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0, The Intel Turbo Boost Technology 2.0 support depends on the CPU types.Refer to www.asus.com
Тип
4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture,Supports Intel Extreme Memory Profile (XMP),Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).Due to Intel chipset limitation, DDR4 240
LAN
Realtek RTL8111H
Чипсет
Intel H270
Видео адаптер
Integrated Graphics Processor- Intel HD Graphics support , Multi-VGA output support : HDMI/DVI-D/RGB ports , - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz, - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz, -
Модел
PRIME H270-PLUS
Форм фактор
ATX
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC , - Supports : Jack-detection, Front Panel Jack-retasking, Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, - Dedicated audi
Other
-
Размер на флаш памет
1 x M.2 Socket 31, with M Key, type 2242/2260/2280 storage devices support (SATA mode - X4 PCIE mode), 1 x M.2 Socket 32, with M Key, type 2242/2260/2280 storage devices support (both SATA - x2 PCIE mode)1, 6 x SATA 6Gb/s port(s), gray, Support Raid 0, 1,
Manufacturer
ASUS
Mnfr Part #
90MB0S90-MOEAYO
I/O
1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 4 x USB 3.0 (blue) Type-A , 2 x USB 2.0 , 1 x 8-channel Audio I/O.
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode) , 1 x PCIe 3.0/2.0 x16 (max at x4 mode) , 4 x PCIe 3.0/2.0 x1.
OS
Windows 10 64-bit, Windows 8.1 64-bit 4, Windows 7 32-bit 4, Windows 7 64-bit 4.
Connectors
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode - X4 PCIE mode), 1 x M.2 Socke
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Pres
CPU сокет
LGA1151
