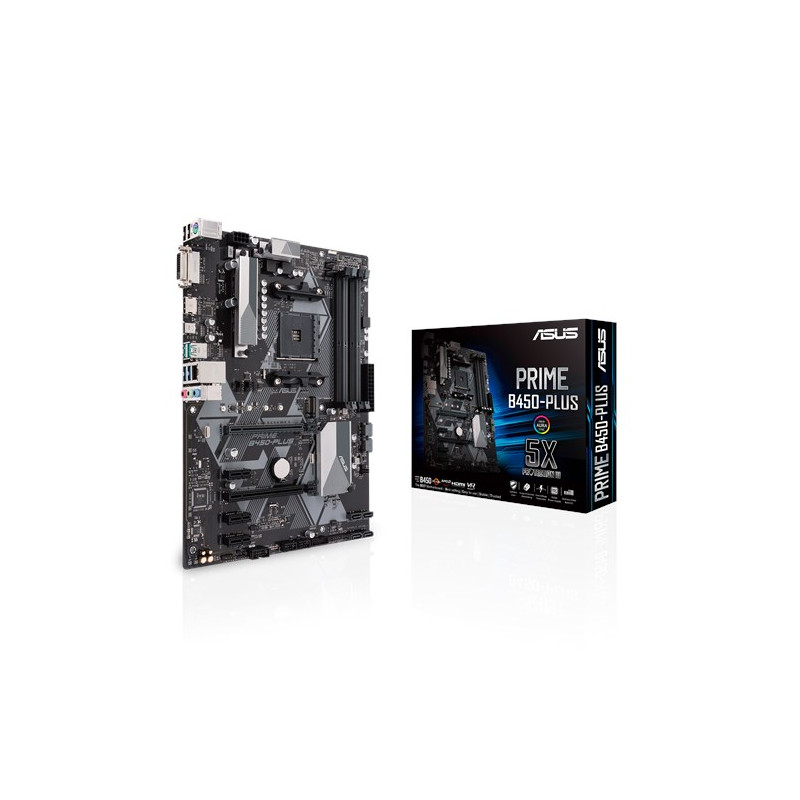

ASUS PRIME B450-PLUS

Техническо описание

Warranty

36 Months

Процесор

AMD AM4 Socket AMD Ryzen™ 2nd Generation/Ryzen™ with Radeon™ Vega Graphics/Ryzen™ 1st Generation Processors, Supports CPU up to 8 cores

Тип

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors, 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory, Dual Channel Memory Architecture, ECC Memory (ECC mode) suppo

LAN

Realtek RTL8111H, ASUS LAN Guard

Чипсет

AMD B450

Видео адаптер

Integrated in the AMD Ryzen™ with Radeon™ Vega Graphics Processors, Multi-VGA output support : HDMI/DVI-D ports, - Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz, - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz

Форм фактор

ATX

Audio

Realtek ALC887-VD2 8-Channel High Definition Audio CODEC , Audio Feature : - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path., - Audio Shielding: Ensures precision analog/digital separation and greatly reduce

Размер на флаш памет

AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA - PCIE 3.0 x 4 mode), 2 x SATA 6Gb/s port(s), AMD B450 chipset :4 x SATA

I/O

1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x 5Gb/s port(s) USB Type-CTM, 2 x USB 3.1 Gen 2 (teal blue)Type-A,, 2 x USB 3.1 Gen 1 (blue) Type-A,, 2 x USB 2.0, 3 x Audio jack(s)

Expansion Slots

AMD Ryzen™ 2nd Generation/ Ryzen™ 1st Generation Processors, 1 x PCIe 3.0/2.0 x16 (x16 mode), AMD Ryzen™ with Radeon™ Vega Graphics Processor, 1 x PCIe 3.0/2.0 x16 (x8 mode), AMD B450 chipset, 1 x PCIe 2.0 x16 (max at x4 mode), 3 x PCIe 2.0 x1

OS

MS Windows

Connectors

1 x Aura RGB Strip Header, 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage

BIOS

128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, F3 My Favorite, Last Modified log, F12 PrintScreen,F4 AURA ON/OFF, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory inform

CPU сокет

AM4
