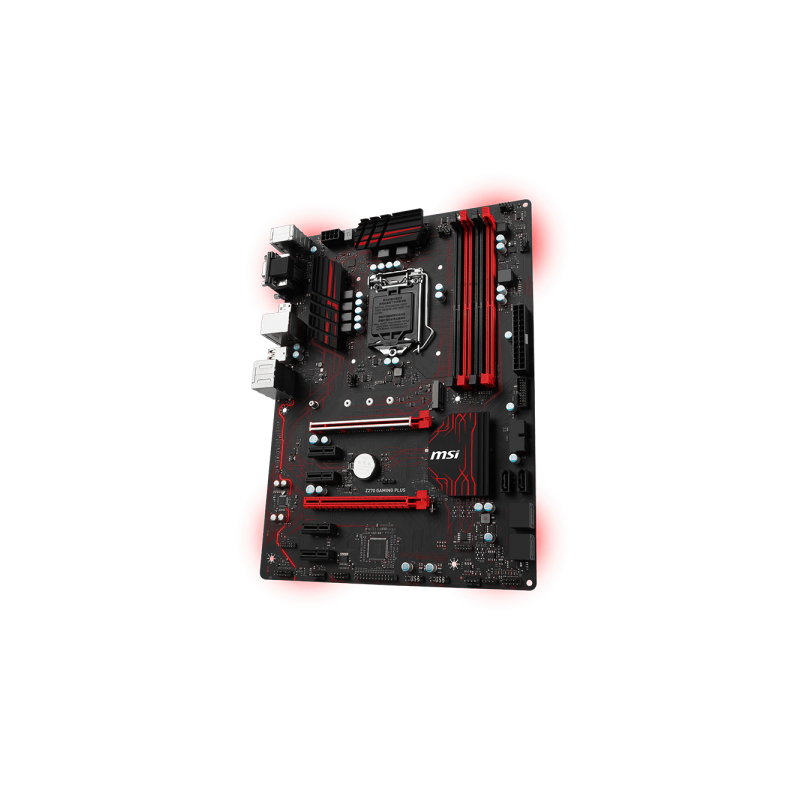

MSI Z270 GAMING PLUS

Техническо описание

Warranty

36 Months

Процесор

Supports 7th/6th Gen Intel Core™ i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151,This function will be supported depend on the CPU.

Тип

• 4 x DDR4 memory slots, support up to 64GB: - 7th Gen processors support DDR4 3800(OC)/ 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133 MHz, - 6th Gen processors support DDR4 3600(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 M

LAN

Intel I219-V Gigabit LAN controller

Чипсет

Intel Z270

Видео адаптер

• 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz, • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz, • 1 x DisplayPort, supports a maximum resolution of 4096x2304@24Hz, 2560x1600@60Hz, 3840x21

Форм фактор

ATX

Audio

Realtek ALC892 Codecr: - 7.1-Channel High Definition Audio

Размер на флаш памет

• Intel Z270 Chipset, • 6 x SATA 6Gb/s ports, • 1x M.2 slots (Key M): - Support up to PCIe 3.0 x4 and SATA 6Gb/s, - Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card, - Supports 2242/ 2260 /2280/ 22110 storage devices, - Intel Optane™ Memory Ready

I/O

- 1 x PS/2 mouse - keyboard combo port, - 2 x USB 2.0 ports, - 1 x VGA port, - 1 x DVI-D port, - 1 x DisplayPort, - 1 x LAN (RJ45) port, - 4 x USB 3.1 Gen1 Type-A ports, - 6 x OFC audio jacks.

Expansion Slots

• 2 x PCIe 3.0 x16 slots (supports x16/x4 mode), • 4 x PCIe 3.0 x1 slots.

OS

Ready for Windows 10

Connectors

- 1 x 24-pin ATX main power connector, - 1 x 8-pin ATX 12V power connector, - 6 x SATA 6Gb/s connectors, - 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports), - 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports), - 1 x 4-pin

BIOS

Click BIOS 5: Award-winning BIOS with high resolution scalable font, favorites and search function

CPU сокет

LGA1151
