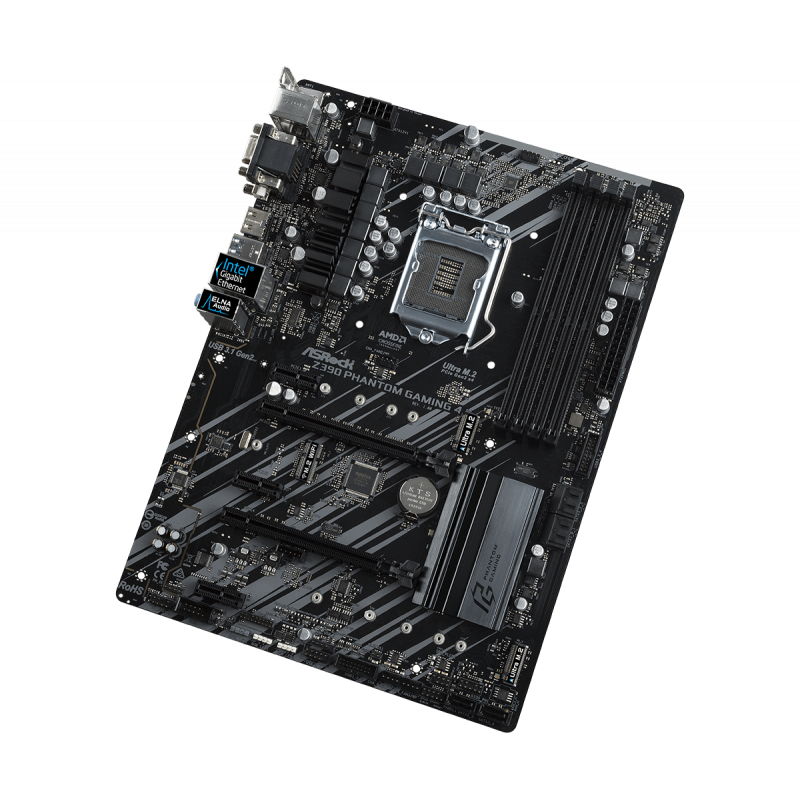

ASROCK Z390 PHANTOM GAMING

266,95 лв.
С вкл. данък
ASROCK Z390 4xDDR4 6xSATA3 RAID HDMI DVI VGA 2xM2 GLAN 2xPCIEx16 3xPCIEx1
ASROCK
z390 phantom gaming

ASROCK Z390 PHANTOM GAMING

Техническо описание

Warranty
36 Months
Процесор
- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151), - Digi Power design, - 10 Power Phase design, - Supports Intel Turbo Boost 2.0 Technology, - Supports Intel K-Series unlocked CPUs, - Supports ASRock BCLK Full-range Overclocking
Тип
- Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - Supports DDR4 4300+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory, - Supports ECC UDI
LAN
- Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel I219V, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
Чипсет
Intel Z390
Видео адаптер
- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics, - DirectX 12, - HWA Encode/Decode: AVC/H.264, HEV
Модел
Z390 Phantom Gaming 4
Форм фактор
ATX
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - ELNA Audio Caps
Размер на флаш памет
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug, - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Expres
I/O
- 1 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x D-Sub Port, - 1 x DVI-D Port, - 1 x HDMI Port, - 2 x USB 2.0 Ports (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-C Port (10
Expansion Slots
- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2), dual at x16 (PCIE2) / x4 (PCIE4)), - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe), - Supports AMD Quad CrossFireX™ and CrossFireX™, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT m
OS
MS Windows
Connectors
- 1 x COM Port Header, - 1 x TPM Header, - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers, - 1 x Addressable LED Header, - 1 x CPU Fan Connector (4-pin), - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), - 1 x 24 pin ATX
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - DRAM, PCH 1.0V, VCCIO, VCCST, VCCSA, VPPM Voltage Multi-adjustment
CPU сокет
LGA1151
