ASROCK X470 MASTER SLI

263,76 лв.
С вкл. данък
ASROCK X470 4xDDR4 6xSATA3 RAID HDMI 2xM2 GLAN SLI 2xPCIEx16 4xPCIEx1
ASROCK
x470 master sli

ASROCK X470 MASTER SLI

Техническо описание

Warranty
36 Months
Процесор
- Supports AMD AM4 Socket Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge), - Digi Power Design (Intersil), - 12 Power Phase design, - Supports 105W Water Cooling (Pinnacle Ridge), Supports 95W Water Cooling (Summit Ridge), Supports 65W Wa
Тип
- Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC - non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC)
LAN
- Gigabit LAN 10/100/1000 Mb/s, - GigaLAN Intel I211AT, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
Чипсет
- AMD Promontory X470
Видео адаптер
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB., - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz, - Supports Auto
Форм фактор
ATX
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - Nichicon Fine Gold Series Audio Caps
Размер на флаш памет
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (

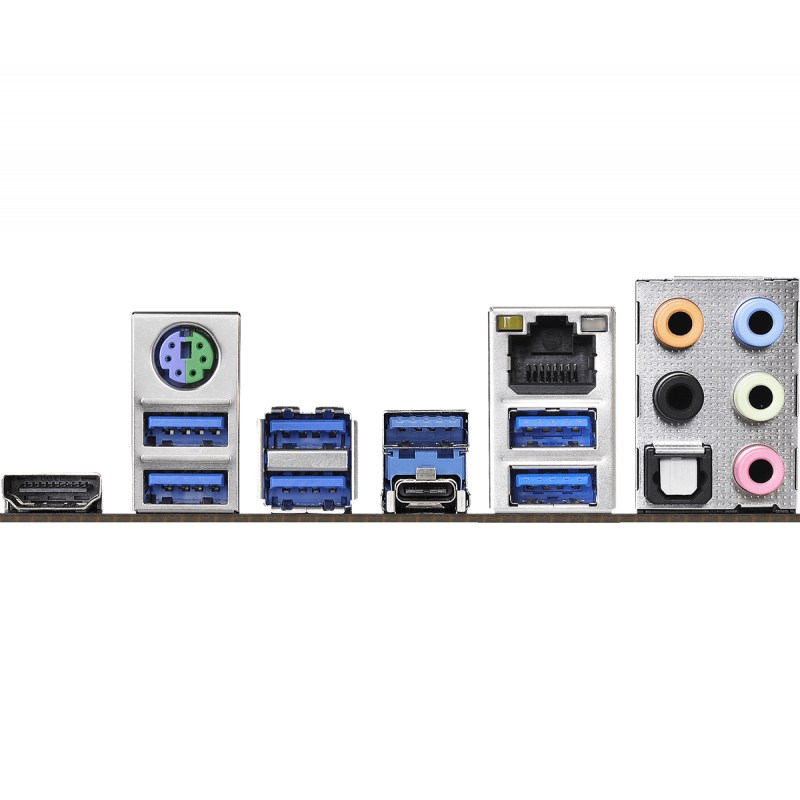

I/O
- 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 1 x Optical SPDIF Out Port, - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 6 x USB 3.1 Gen1 Ports (Supports ESD P
Expansion Slots
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge), - 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1), dual at x8 (PCIE1) / x8 (PCIE4)), AMD Ryzen series CPUs (Raven Ridge), - 1 x PCI Express 3.0 x16 Slot (single at x8 (PCIE1)) (If you use Athlo
OS
MS Windows
Connectors
- 1 x COM Port Header, - 1 x TPM Header, - 1 x Power LED and Speaker Header, - 1 x AMD Fan LED Header, - 1 x RGB LED Header, - 1 x Addressable LED Header, - 1 x CPU Fan Connector (4-pin), - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment
CPU сокет
AM4
