ASROCK B450 GAMING K4

Техническо описание

Warranty

36 Months

Процесор

- AMD AM4 Socket, - Digi Power design, - 9 Power Phase design, - Supports 105W Water Cooling (Pinnacle Ridge), Supports 95W Water Cooling (Summit Ridge), Supports 65W Water Cooling (Raven Ridge)

Тип

- Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933/2667/2400/2133 ECC - non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC) / 2933(OC)

LAN

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s, - Realtek RTL8111H, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE

Чипсет

- AMD Promontory B450

Видео адаптер

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB., - Three graphics output options: D-Sub, HDMI and DisplayPort 1.2, - Supports Triple Mon

Форм фактор

ATX

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - ELNA Audio Caps, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel, - Supports Creative Sound Blas

Размер на флаш памет

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug, - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 P

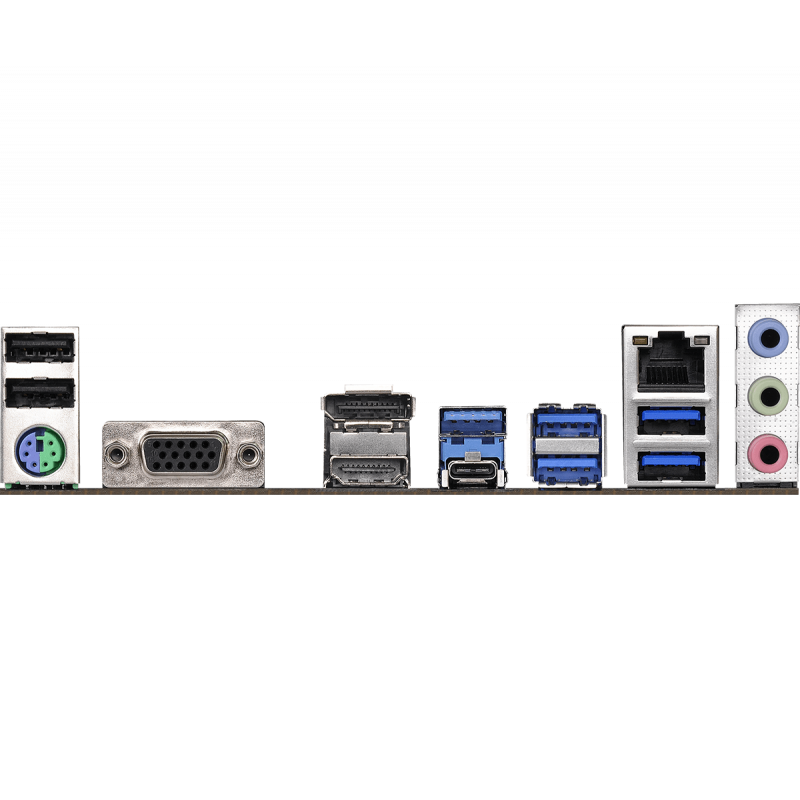

I/O

- 1 x PS/2 Mouse/Keyboard Port, - 1 x D-Sub Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 2 x USB 2.0 Ports (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports

Expansion Slots

AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge), - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode, PCIE4: x4 mode), AMD 7th A-Series APUs, - 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode, PCIE4: x2 mode), AMD Ryzen series CPUs (Raven Ridge), - 2 x

OS

MS Windows

Connectors

- 1 x COM Port Header, - 1 x TPM Header, - 1 x Power LED and Speaker Header, - 1 x RGB LED Header, - 1 x Addressable LED Header, - 1 x AMD Fan LED Header, - 1 x CPU Fan Connector (4-pin), - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control

BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - DRAM Voltage multi-adjustment

CPU сокет

LGA1151
