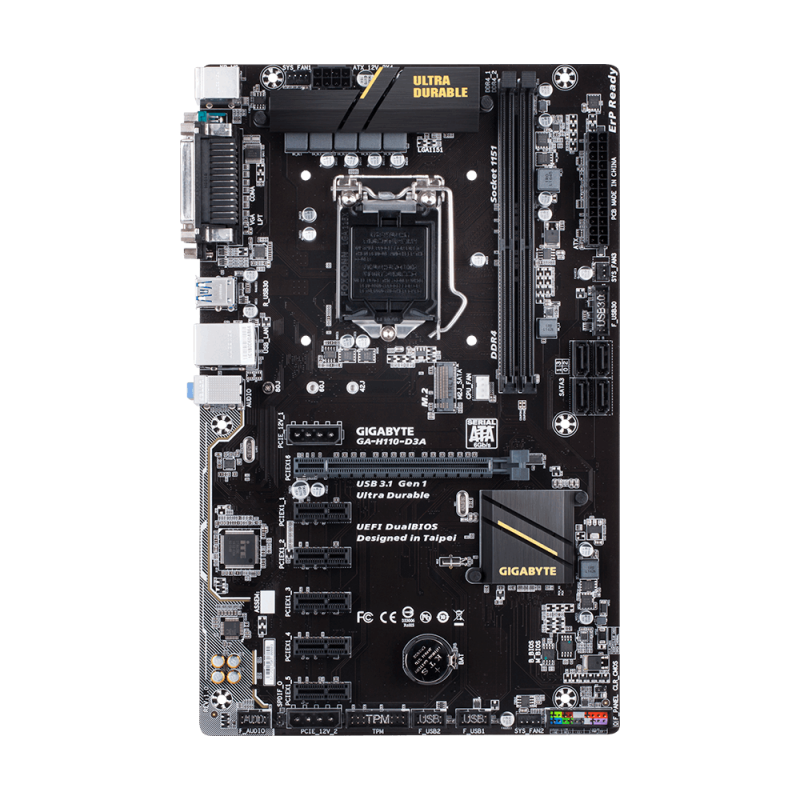

GB H110-D3A

Техническо описание

Warranty

36 Months

Процесор

Support for 7th/6th Generation Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package L3 cache varies with CPU

Тип

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory,Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory inst

LAN

Realtek GbE LAN chip (10/100/1000 Mbit)

Чипсет

Intel H110 Express Chipset

Видео адаптер

Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, Maximum shared memory of 1 GB

Форм фактор

ATX

Audio

Realtek ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel,To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out

Other

-

Размер на флаш памет

Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support), 4 x SATA 6Gb/s connectors,Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

I/O

1 x PS/2 mouse port, 1 x PS/2 Keyboard port, 1 x parallel port, 1 x serial port, 1 x D-Sub port, 2 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks (Line In, Line Out, Mic In)

Expansion Slots

1 x PCI Express x16 slot, running at x16, (The PCI Express x16 slot conforms to PCI Express 3.0 standard.), 5 x PCI Express x1 slots, (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

OS

Windows 10 64-bit (for 7th Generation Intel Processors), Windows 10 64-bit / Windows 8.1 64-bit / Windows 7 32-bit / 64-bits (for 6th Generation Intel Processors),Please download the "Windows USB Installation Tool" from GIGABYTEs website and install it be

Connectors

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 2 x PCIe power connectors, 1 x CPU fan header, 3 x system fan headers, 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x

BIOS

2 x 64 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

CPU сокет

LGA1151
