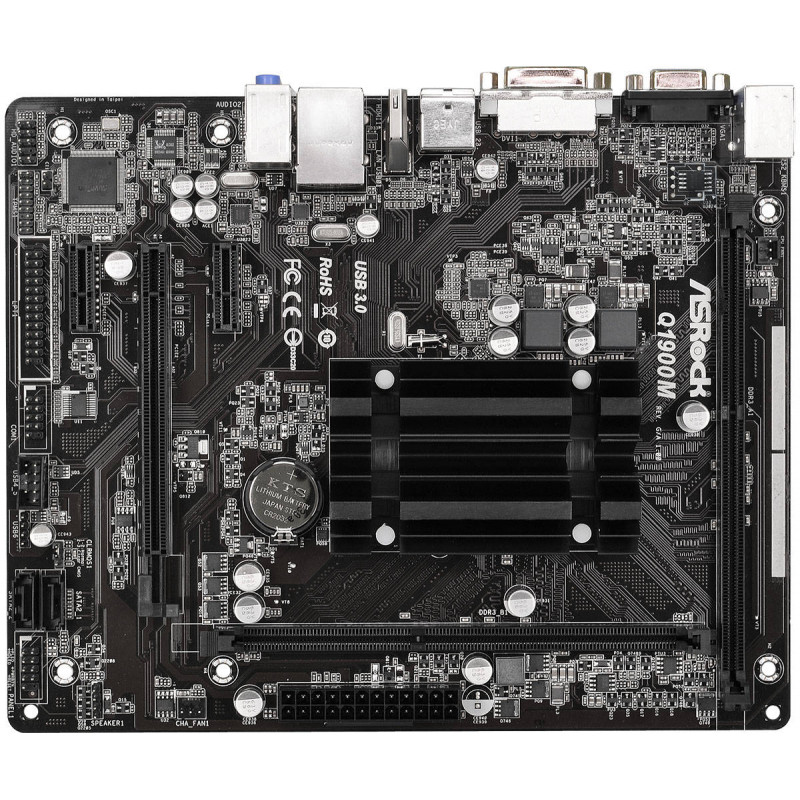

ASROCK Q1900M

Техническо описание

Warranty

36 Months

Процесор

Intel Quad-Core Processor J1900 (2 GHz)

Тип

Dual Channel DDR3/DDR3L Memory Technology, 2 x DDR3/DDR3L DIMM Slots, Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory, Max. capacity of system memory: 16GB.

LAN

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Чипсет

-

Видео адаптер

- Intel 7th generation (Gen 7) graphics, - DirectX 11.0, Pixel Shader 5.0, - Three graphics output options: D-Sub, DVI-D and HDMI, - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz, - Supports DVI-D with max. resolution up to 1920x120

Модел

Q1900M

Форм фактор

Micro Tower

Audio

5.1 CH HD Audio (Realtek ALC662 Audio Codec)

Other

-

Размер на флаш памет

- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Manufacturer

ASROCK

Mnfr Part #

-

I/O

- 1 x D-Sub Port, - 1 x DVI-D Port, - 1 x HDMI Port, - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)), - 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection)), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and

Expansion Slots

1xPCI Express 2.0 x16 Slot, 2xPCI Express 2.0 x1 Slots

OS

Microsoft Windows 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit

Connectors

- 1 x Print Port Header, - 1 x COM Port Header, - 1 x TPM Header, - 1 x Chassis Intrusion Header, - 1 x CPU Fan Connector (3-pin), - 1 x Chassis Fan Connector (3-pin), - 1 x 24 pin ATX Power Connector, - 1 x Front Panel Audio Connector, - 2 x USB 2.0 Head

BIOS

64Mb AMI UEFI Legal BIOS with GUI support, Supports Plug and Play, ACPI 5.0 Compliant wake up events, Supports jumperfree, SMBIOS 2.7 Support.

CPU сокет

-

Конкретни референции
