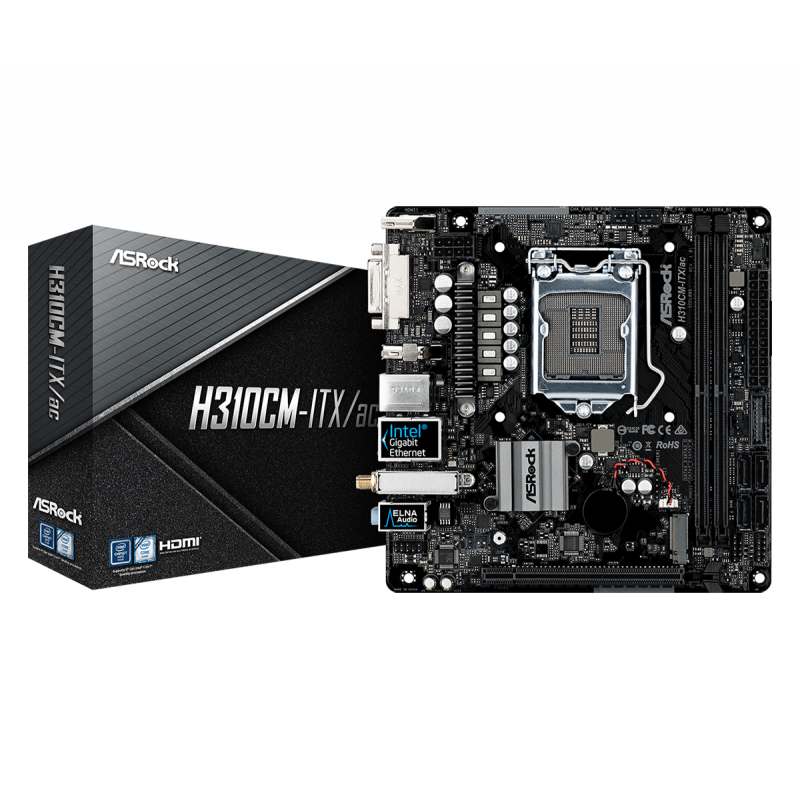

ASROCK H310CM-ITX/AC

169,75 лв.
С вкл. данък
ASROCK H310 2xDDR4 4xSATA3 HDMI DVI DP M2 GLAN 1xPCIEx16 WiFi
ASROCK
H310CM-ITX/AC

ASROCK H310CM-ITX/AC

Техническо описание

Warranty
36 Months
Процесор
- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151), - Supports CPU up to 95W, - Digi Power design, - 5 Power Phase design, - Supports Intel Turbo Boost 2.0 Technology
Тип
- Dual Channel DDR4 Memory Technology, - 2 x DDR4 DIMM Slots, - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, - Supports ECC UDIMM memory modules (operate in non-ECC mode), - Max. capacity of system memory: 64GB, - Supports Intel Extreme M
LAN
- Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel I219V, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
Чипсет
Intel H310
Видео адаптер
- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics, - DirectX 12, - HWA Encode/Decode: AVC/H.264, HEV
Форм фактор
Mini Tower
Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), - Supports Surge Protection, - ELNA Audio Caps
Other
- Intel 802.11ac WiFi Module, - Supports IEEE 802.11a/b/g/n/ac, - Supports Dual-Band (2.4/5 GHz), - Supports high speed wireless connections up to 433Mbps, - Supports Bluetooth 4.2 / 3.0 + High speed class II
Размер на флаш памет
- 4 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug, - 1 x M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x4 (20 Gb/s)
I/O
- 2 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x DVI-I Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 2 x USB 2.0 Ports (Supports ESD Protection), - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED a
Expansion Slots
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)
OS
MS Windows
Connectors
- 1 x Chassis Intrusion Header, - 1 x CPU Fan Connector (4-pin), - 1 x Chassis Fan Connector (4-pin), - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), - 1 x 24 pin ATX Power Connector, - 1 x 8 pin 12V Power Connector, - 1 x Front
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment
CPU сокет
1151
