ASROCK Z390 EXTREME4

334,62 лв.
С вкл. данък
ASROCK Z390 4xDDR4 6xSATA3 RAID HDMI DP VGA 2xM2 GLAN SLI 3xPCIEx16 3xPCIEx1
ASROCK
Z390 EXTREME4

    Tags:

ASROCK Z390 EXTREME4

Техническо описание

Warranty
36 Months
Процесор
- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151), - Digi Power , - 12 Power Phase design, - Supports Intel Turbo Boost 2.0 Technology, - Supports Intel K-Series unlocked CPUs, - Supports ASRock BCLK Full-range Overclocking
Тип
- Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - Supports DDR4 4300+(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory - Suppor
LAN
- Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel I219V, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
Чипсет
Intel Z390
Видео адаптер
- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics, - DirectX 12, - HWA Encode/Decode: AVC/H.264, HEV
Форм фактор
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - Supports Purity Sound™ 4, - Nichicon Fine Gold Series Audio Caps, - 120dB SNR DAC with Differential Amplifier, - NE553
Размер на флаш памет
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 16), NCQ, AHCI and Hot Plug, - 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug, - 1 x Ultra M.2 Socket (M2_1),
I/O

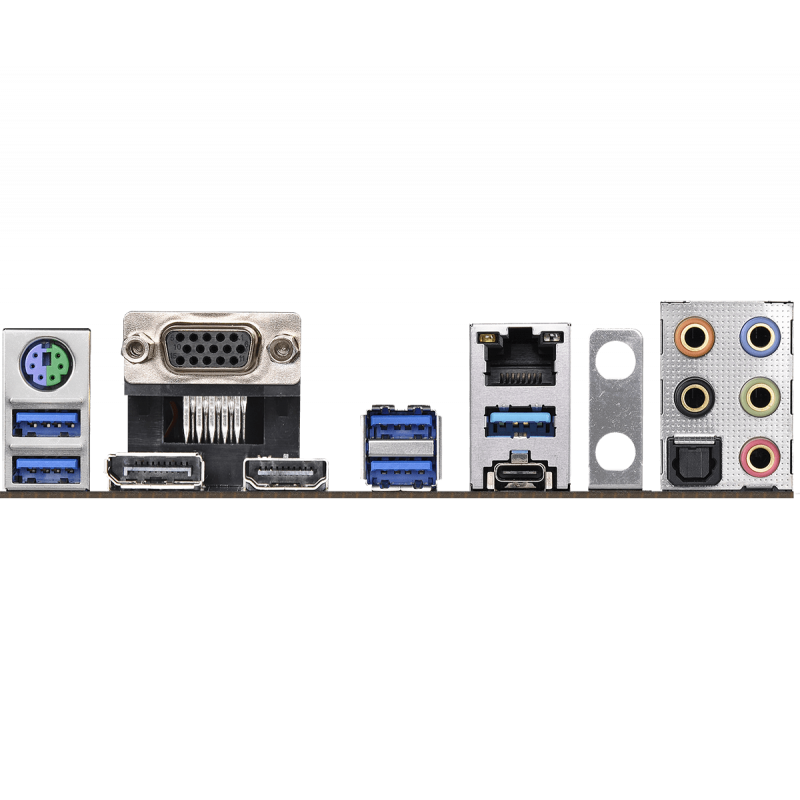

- 1 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x D-Sub Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 1 x Optical SPDIF Out Port, - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-C Port (10
Expansion Slots
- 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2), dual at x8 (PCIE2) / x8 (PCIE4), triple at x8 (PCIE2) / x8 (PCIE4) / x4 (PCIE6)), - 3 x PCI Express 3.0 x1 Slots (Flexible PCIe), - Supports AMD Quad CrossFireX™, 3-Way CrossFireX™
OS
MS Windows
Connectors
- 1 x COM Port Header, - 1 x TPM Header, - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers, - 1 x Addressable LED Header, - 1 x CPU Fan Connector (4-pin), - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), - 3 x Chassis/Water Pu
BIOS
- 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS), - Supports Secure Backup UEFI Technology, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - CPU Core/Cache, GT, DRAM, PCH 1.0V, VCCIO, VCCST, VCC
CPU сокет
1151
