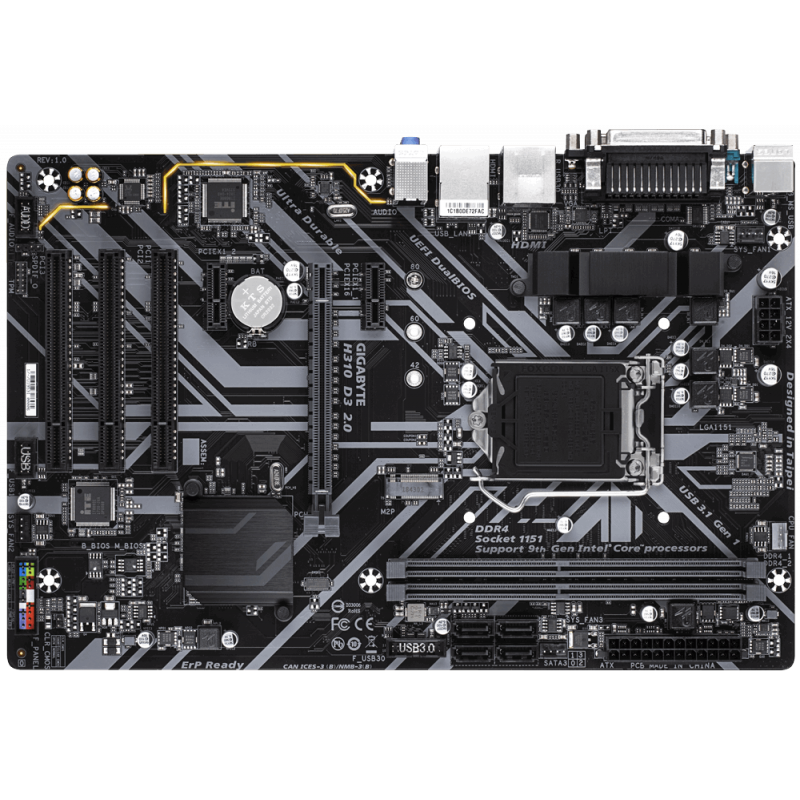

GB H310 D3 2.0-84986
  • GB H310 D3 2.0-84986
  • GB H310 D3 2.0-84987
  • GB H310 D3 2.0-84988

GB H310 D3 2.0

147,13 лв.
С вкл. данък
GB H310 2xDDR4 4xSATA3 HDMI VGA M2 GLAN 1xPCIEx16 2xPCIEx1 3xPCI COM LPT
GIGABYTE
H310 D3

GB H310 D3 2.0

Техническо описание

Warranty
36 Months
Процесор
Support for 9th and 8th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package, L3 cache varies with CPU
Тип
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, Support for DDR4 2666/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC U
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Чипсет
Intel H310 Express Chipset
Видео адаптер
Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz,Support for HDMI 1.4 version and HDCP 2.2. Maximum shared memory
Форм фактор
ATX Form Factor, 30.5cm x 20cm
Audio
Realtek ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel,To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Размер на флаш памет
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support), 4 x SATA 6Gb/s connectors,Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
I/O
1 x PS/2 keyboard/mouse port, 1 x parallel port, 1 x serial port, 1 x D-Sub port, 1 x HDMI ports, 2 x USB 3.1 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16), (The PCI Express x16 slot conforms to PCI Express 3.0 standard.), 2 x PCI Express x1 slots, (The PCI Express x1 slots conform to PCI Express 2.0 standard.), 3 x PCI slots
OS
Support for Windows 10 64-bit
Connectors
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 4 x SATA 6Gb/s connectors, 1 x M.2 Socket 3 connector, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB
BIOS
2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
CPU сокет
1151
