GB B365M D3H

181,85 лв.
С вкл. данък
GB B365 4xDDR4 6xSATA3 DP HDMI DVI VGA 1xM2 GLAN 2xPCIEx16 1xPCIEx1 1xPCI
GIGABYTE
B365M D3H

GB B365M D3H

Техническо описание

Warranty
36 Months
Процесор
Support for 9th and 8th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/ Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1151 package, L3 cache varies with CPU
Тип
4 x DDR4 DIMM sockets supporting up to 64 GB of system memory, Dual channel memory architecture, Support for DDR4 2666/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode), Support for non-ECC U
LAN
Intel GbE LAN chip (10/100/1000 Mbit)
Чипсет
Intel B365 Express Chipset
Видео адаптер
Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz,The DVI-D port does not support D-Sub connection by adapter. 1
Форм фактор
Micro ATX Form Factor, 24.4cm x 23.0cm
Audio
Realtek ALC892 codec, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
Размер на флаш памет
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support), 6 x SATA 6Gb/s connectors, Support for RAID 0, RAID 1, RAID 5, and RAID 10,Refer to "1-7 Internal Connectors," for the installation notices for the M.
I/O

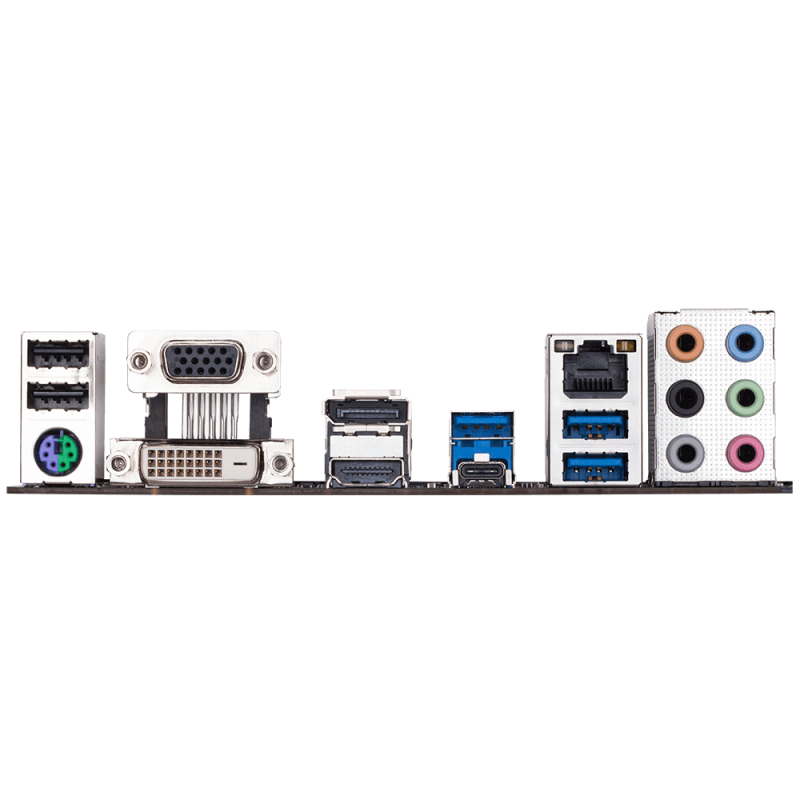

1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x DisplayPort, 1 x HDMI port, 1 x USB Type-C™ port, with USB 3.1 Gen 1 support, 3 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 6 x audio jacks
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16),For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x4 (PCIEX4), 1 x PCI Express x1 slot, (Al
OS
Support for Windows 10 64-bit
Connectors
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 3 x system fan headers, 1 x RGB LED strip header, 1 x M.2 Socket 3 connector, 6 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x
BIOS
2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
CPU сокет
1151
