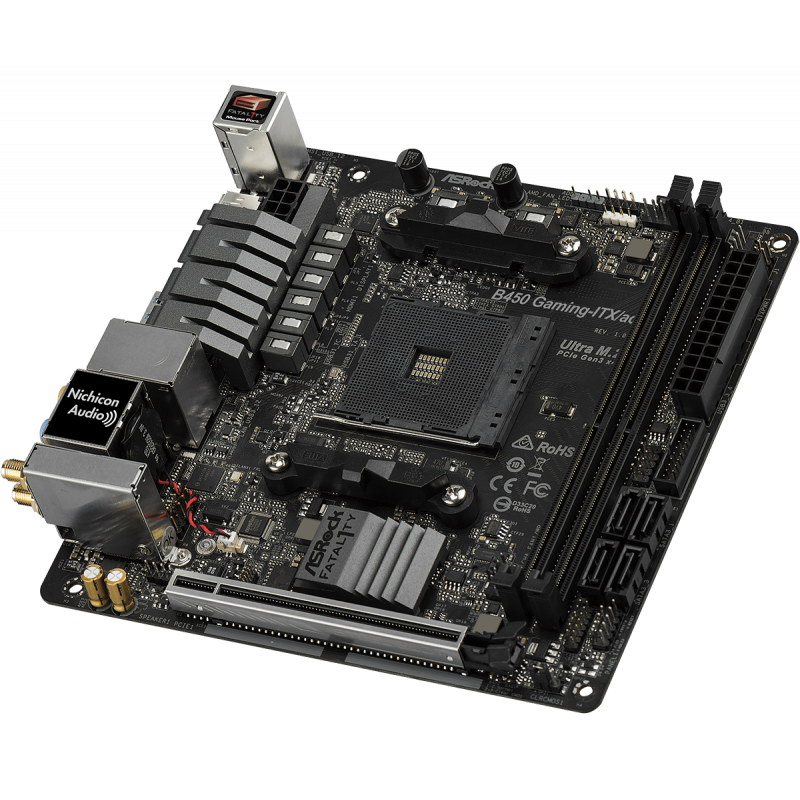

ASROCK B450 GAMING-ITX/AC

Техническо описание

Warranty

36 Months

Процесор

- AMD AM4 Socket, - Digi Power design, - 8 Power Phase design, - Supports 105W Water Cooling (Pinnacle Ridge), Supports 95W Water Cooling (Summit Ridge), Supports 65W Water Cooling (Raven Ridge)

Тип

- Dual Channel DDR4 Memory Technology, - 2 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC - non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC)

LAN

- Gigabit LAN 10/100/1000 Mb/s, - GigaLAN Intel I211AT, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE

Чипсет

- AMD Promontory B450

Видео адаптер

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU, - Integrated AMD Radeon™ R-Series Graphics in A-series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB., - Dual graphics output: Sup

Форм фактор

Mini Tower

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - Nichicon Fine Gold Series Audio Caps, - 120dB SNR DAC with Differential Amplifier, - Pure Power-In, - Direct Drive Tec

Other

- Intel 802.11ac WiFi Module, - Supports IEEE 802.11a/b/g/n/ac, - Supports Dual-Band (2.4/5 GHz), - Supports high speed wireless connections up to 433Mbps, - Supports Bluetooth 4.2 / 3.0 + High speed class II

Размер на флаш памет

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Rid

I/O

- 2 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 1 x Optical SPDIF Out Port, - 2 x USB 2.0 Ports (Supports ESD Protection), - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.1 Gen

Expansion Slots

AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge), - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), AMD Ryzen series CPUs (Raven Ridge), - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode), AMD Athlon series CPUs, - 1 x PCI Express 3.0 x16 Slot (PCIE1:

OS

MS Windows

Connectors

- 1 x LPC Header, - 1 x Addressable LED Header, - 1 x AMD Fan LED Header, - 1 x CPU Fan Connector (4-pin), - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control), - 1 x 24 pin ATX Power Connector, - 1 x 8 pin 12V Power Connector (Hi-Den

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment

CPU сокет

AM4
