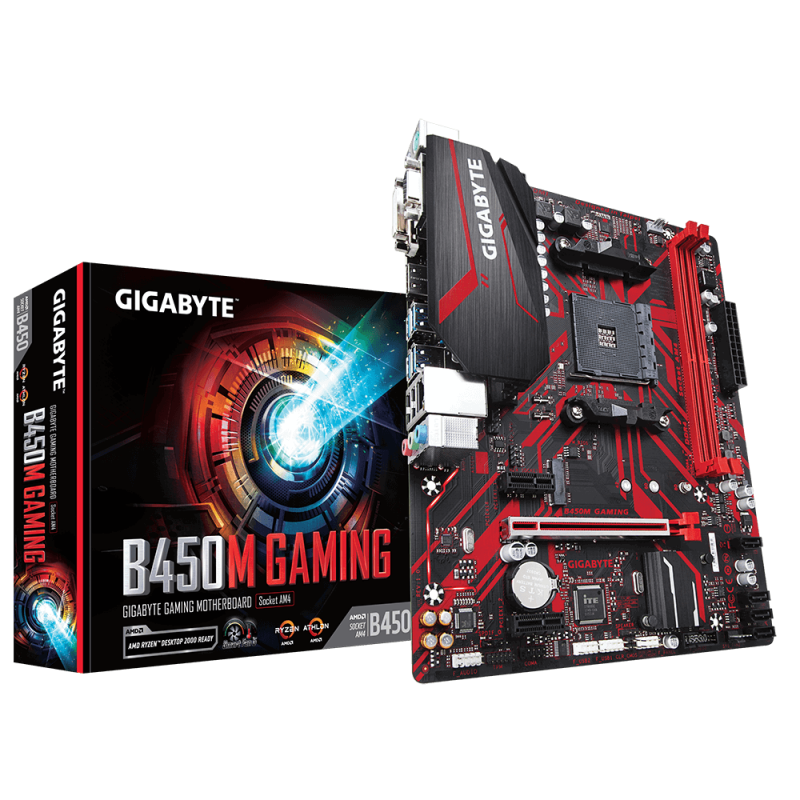

GB B450M GAMING-87356
  • GB B450M GAMING-87356
  • GB B450M GAMING-87357
  • GB B450M GAMING-87358

GB B450M GAMING

167,39 лв.
С вкл. данък
GB B450M GAMING

Техническо описание

Warranty
36 Months
Процесор
AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors
Тип
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory, Dual channel memory architecture, Support for DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/2933/2667/2400/2133 MHz memory modules, Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate i
LAN
Realtek GbE LAN chip (10/100/1000 Mbit)
Чипсет
AMD B450
Видео адаптер
Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz,The DVI-D port does not support D-Sub connection by adapter., 1 x HDMI port, supporting a
Форм фактор
Micro Tower
Audio
Realtek ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel,To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver., Support for S/PDIF Out
Размер на флаш памет
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support),Actual support may vary by CPU.,Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU., 4 x SATA 6Gb/s connectors, Support
I/O
1 x PS/2 keyboard port, 1 x PS/2 mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
Expansion Slots
1 x PCI Express x16 slot, running at x16, (The PCIEX16 slot conforms to PCI Express 3.0 standard.), 2 x PCI Express x1 slot, (The PCI Express x1 slot conforms to PCI Express 2.0 standard.)
OS
Support for Windows 10 64-bit, Support for Windows 7 64-bit
Connectors
1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x CPU
BIOS
1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
CPU сокет
AM4
