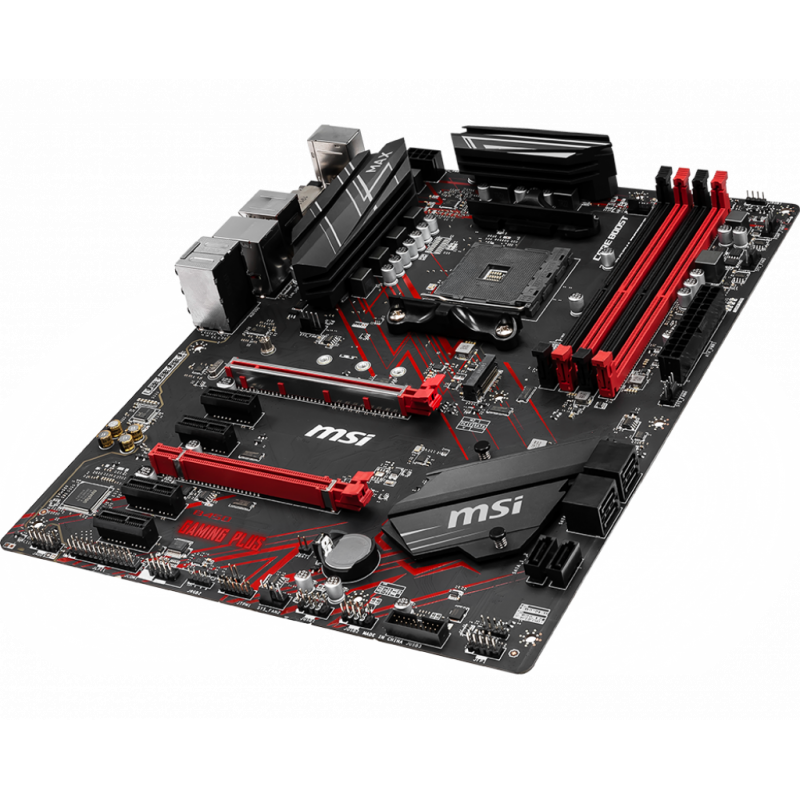

MSI B450 GAMING PLUS MAX /AM4

Техническо описание

Warranty

36 Months

Процесор

Supports 1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics and Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

Тип

4 x DDR4 memory slots, support up to 64GB, Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC), For AMD Ryzen Gen3 (R5/R7/R9), Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/4133 MHz (by A-XMP OC MODE), For AMD Other CPU, Supports 2667/ 280

LAN

1 x Realtek 8111H Gigabit LAN controller

Чипсет

AMD B450

Видео адаптер

1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hzz1, 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1, Only support when using Ryzen™ with Radeon™ Vega Graphics, 2nd Gen AMD Ryzen™ with Radeon™ Graphics

Форм фактор

Mini Tower

Audio

Realtek ALC892 Codec:7.1-Channel High Definition Audio

Размер на флаш памет

2 x SATA 6Gb/s ports1, 1 x M.2 slot (Key M)1, Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) or PCIe 3.0 x2 (Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s 2242/ 2

I/O

PS/2 Combo Port, USB 3.2 Gen1, LAN Port, HD Audio Connectors, Flash BIOS Button, USB 2.0 Ports, DVI-D Port, HDMI Port, USB 3.2 Gen2

Expansion Slots

1 x PCIe 3.0 x16 slot (PCI_E1), 1st, 2nd and 3rd Gen AMD Ryzen™ support x16 mode, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics support x8 mode, Athlon™ with Radeon™ Vega Graphics support x4 mode, 1 x PCIe 2.0 x16 slot (PC

OS

Support for Windows 10 64-bit, Support for Windows 7 64-bit

Connectors

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 6 x SATA 6Gb/s connectors, 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports), 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports), 1 x 4-pin CPU fan connec

CPU сокет

AM4
