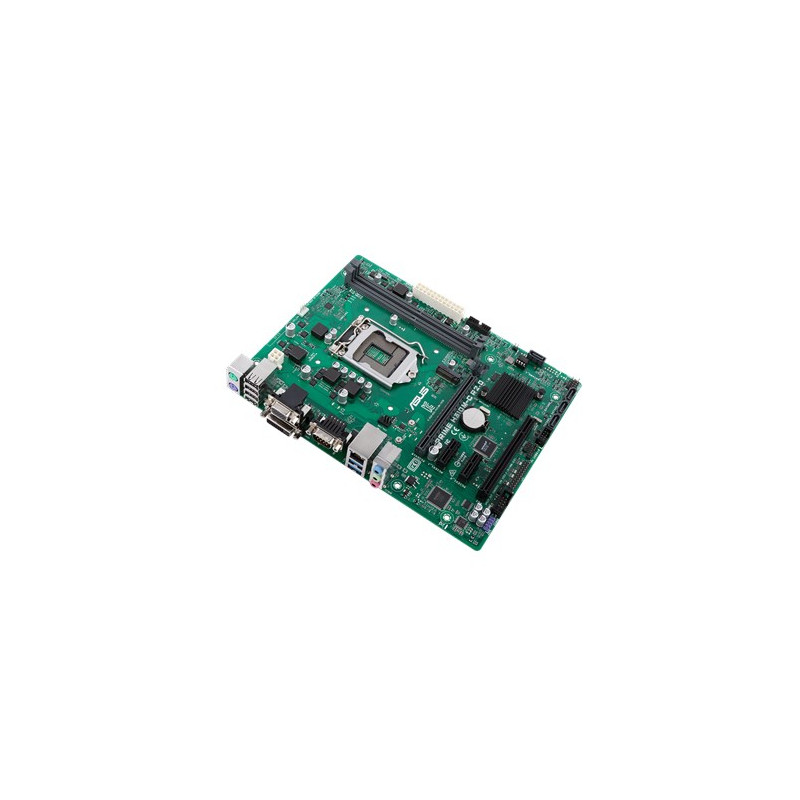

ASUS PRIME H310M-C R2.0/CSM-89409
  • ASUS PRIME H310M-C R2.0/CSM-89409
  • ASUS PRIME H310M-C R2.0/CSM-89410
  • ASUS PRIME H310M-C R2.0/CSM-89411

ASUS PRIME H310M-C R2.0/CSM

132,52 лв.
С вкл. данък
ASUS H310 2xDDR4 4xSATA3 DVI VGA M2 GLAN 2xPCIEx16 2xPCIEx1 COM
Asus
90MB0ZM0-M0EAYC

ASUS PRIME H310M-C R2.0/CSM

Техническо описание

Warranty
36 Months
Процесор
Intel for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium/Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0
Тип
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory, Supports Intel Extreme Memory Profile (XMP),Hyper DIMM support is subject to the physical characteristics of individual CPUs. ,Refer to www.asus.com for the Memory QVL (Qualified Ve
LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller(s)
Чипсет
Intel H310
Видео адаптер
Integrated Graphics Processor- Intel HD Graphics support, Multi-VGA output support : DVI-D/RGB ports, - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz, - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz, Maximum shared memory of 1024 MB (for
Форм фактор
uATX Form Factor, 9.6 inch x 7.6 inch ( 24.4 cm x 19.3 cm )
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC 1, - Supports : Jack-detection, Front Panel Jack-retasking
Размер на флаш памет
Intel H310 Chipset :1 x M.2 Socket 3, with M Key, type 2260/2280 storage devices support (both SATA - PCIE mode), 4 x SATA 6Gb/s port(s)
I/O
1 x PS/2 keyboard (purple), 1 x PS/2 mouse (green), 1 x DVI-D, 1 x D-Sub, 1 x LAN (RJ45) port(s), 2 x USB 3.1 Gen 1, 4 x USB 2.0, 3 x Audio jack(s)
Expansion Slots
1 x PCIe 3.0/2.0 x16,2 x PCIe 2.0 x1, 1 x PCI
Connectors
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s), 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA - PCIE x2 mode), 1 x LPT
BIOS
128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit

Конкретни референции

Мнения

Няма потребителски мнения до този момент.
