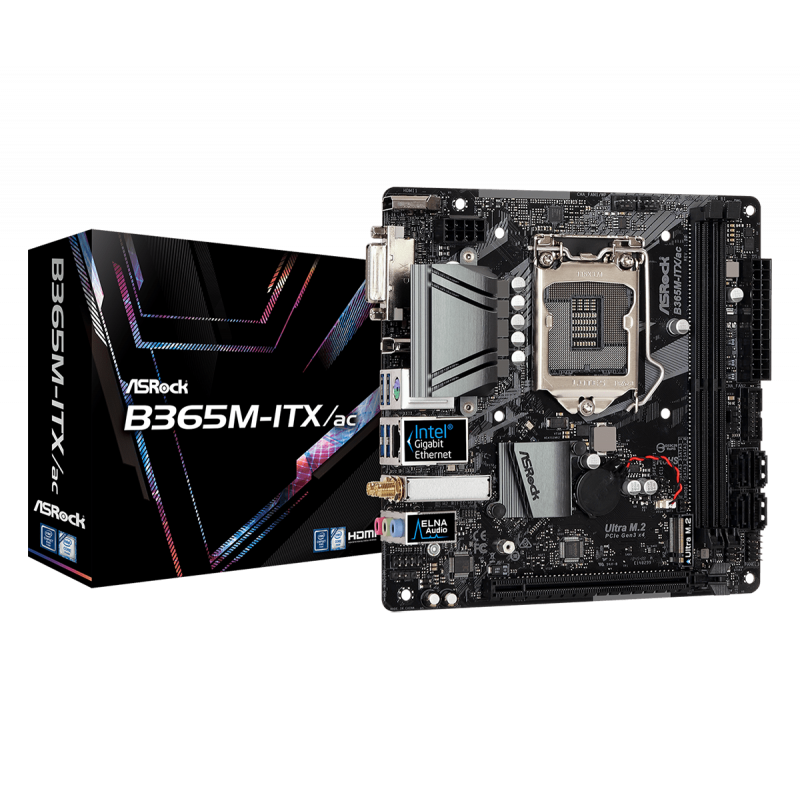

ASROCK B365M-ITX/AC

Техническо описание

Warranty

36 Months

Процесор

- Supports 9th and 8th Gen Intel Core™ Processors (Socket 1151), - Supports CPU up to 95W, - Digi Power design, - 5 Power Phase design, - Supports Intel Turbo Boost 2.0 Technology

Тип

- Dual Channel DDR4 Memory Technology, - 2 x DDR4 DIMM Slots, - Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory, - Supports ECC UDIMM memory modules (operate in non-ECC mode), - Max. capacity of system memory: 32GB, - Supports Intel Extreme M

LAN

- Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel I219V, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE

Чипсет

- Intel B365

Видео адаптер

- Supports Intel UHD Graphics Built-in Visuals : Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru™ 3D, Intel Clear Video HD Technology, Intel Insider™, Intel UHD Graphics, - DirectX 12, - HWA Encode/Decode: AVC/H.264, HEV

Форм фактор

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - Solid Capacitor design

Audio

- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), - Supports Surge Protection, - ELNA Audio Caps

Other

- Intel 802.11ac WiFi Module, - Supports IEEE 802.11a/b/g/n/ac, - Supports Dual-Band (2.4/5 GHz), - Supports high speed wireless connections up to 433Mbps, - Supports Bluetooth 4.2 / 3.0 + High speed class II

Размер на флаш памет

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug, - 1 x Ultra M.2 Socket, supports M Key type 2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to G

I/O

- 2 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x DVI-I Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 4 x USB 3.1 Gen1 Ports (Supports ESD Protection), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - HD Audio Jacks: Line in / Fron

Expansion Slots

- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode), - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

OS

MS Windows

Connectors

- 1 x Chassis Intrusion Header, - 1 x CPU Fan Connector (4-pin), - 1 x Chassis Fan Connector (4-pin), - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), - 1 x 24 pin ATX Power Connector, - 1 x 8 pin 12V Power Connector, - 1 x Front

BIOS

- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - CPU, DRAM, PCH 1.0V, VCCST Voltage Multi-adjustment

CPU сокет

1151
