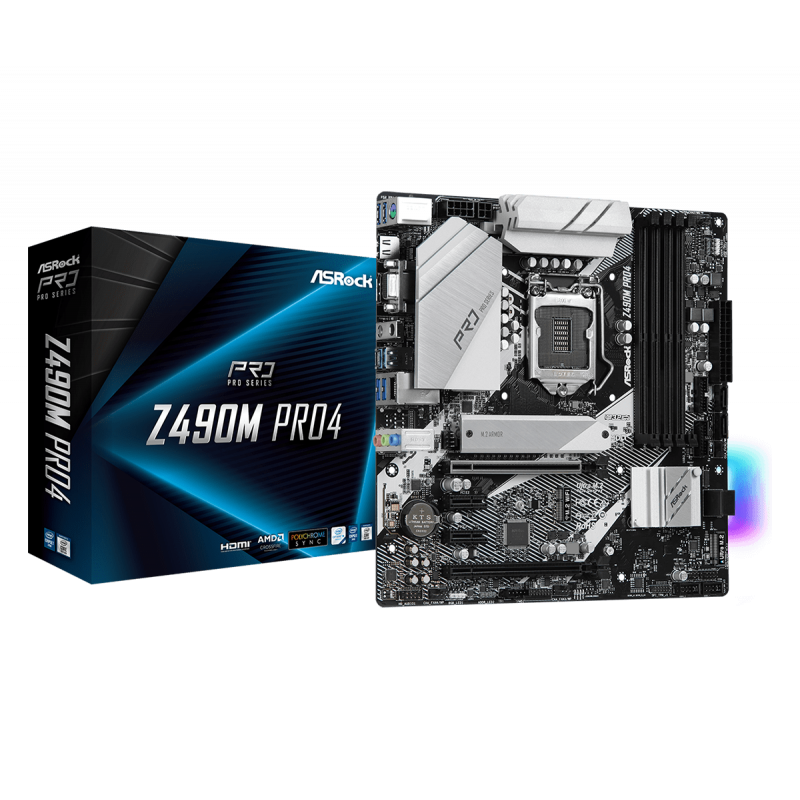

ASROCK Z490M PRO4/ LGA1200

313,98 лв.
С вкл. данък
ASROCK Z490 4xDDR4 4xSATA3 RAID HDMI DP VGA 2xM2 GLAN 2xPCIEx16 2xPCIEx1
ASROCK
Z490M PRO4

ASROCK Z490M PRO4/ LGA1200

Техническо описание

Warranty
36 Months
Процесор
- Supports 10th Gen Intel Core™ Processors (Socket 1200), - Digi Power design, - 10 Power Phase design, - Supports Intel Turbo Boost Max 3.0 Technology, - Supports Intel K-Series unlocked CPUs
LAN
- Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel I219V, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
Чипсет
- Intel Z490
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel, - Nahimic Audio
I/O
- 1 x Antenna Bracket, - 1 x PS/2 Mouse/Keyboard Port, - 1 x D-Sub Port, - 1 x HDMI Port, - 1 x DisplayPort 1.4, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection), - 4 x
Expansion Slots
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE4: single at x16 (PCIE1), dual at x16 (PCIE1) / x4 (PCIE4)), - 2 x PCI Express 3.0 x1 Slots, - Supports AMD Quad CrossFireX™ and CrossFireX™, - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel
OS
MS Windows
Connectors
- 1 x SPI TPM Header, - 1 x Chassis Intrusion and Speaker Header, - 2 x RGB LED Headers, - 2 x Addressable LED Headers, - 1 x CPU Fan Connector (4-pin), - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), - 4 x Chassis/Water Pump Fan Con
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - ACPI 6.0 Compliant wake up events, - SMBIOS 2.7 Support, - CPU Core/Cache, GT, DRAM, VPPM,VTTDDR, PCH 1.05V, VCCIO, VCCST, VCCSA, VCCPLL,VCCPLL_OC, CPU Internal PLL, GT PLL, Ring PLL, System Age
Memory type
- Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - Supports DDR4 4500+(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933/2800/2666 / 2400 / 2133 non-ECC, un-buffered memor
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17), NCQ, AHCI and Hot Plug, - 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express modu
Form factor
Micro Tower
Graphics
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1, - Graphics, Media - Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable
