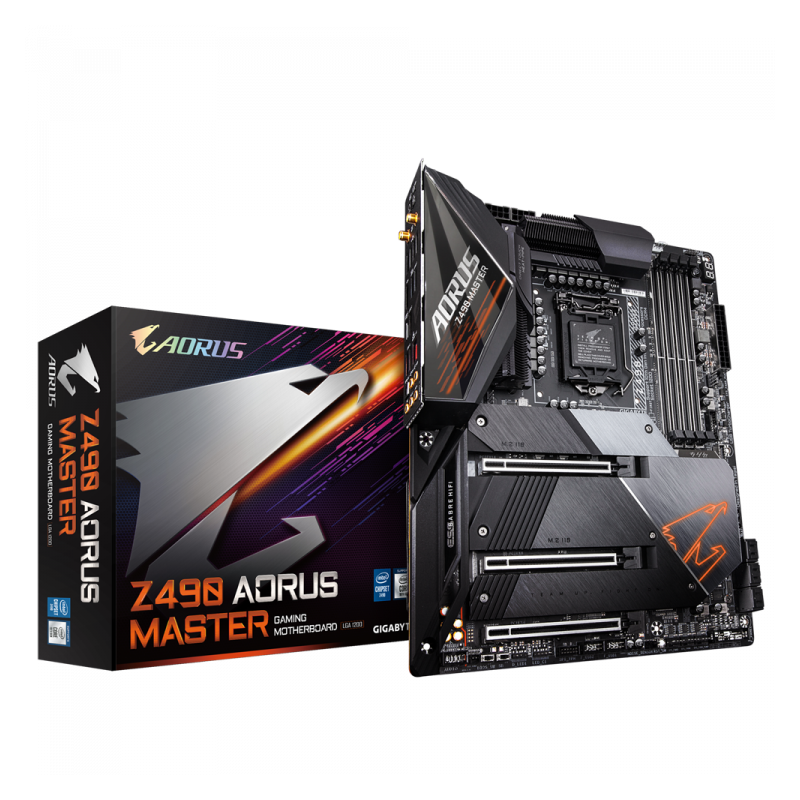

GB Z490 AORUS MASTER

778,97 лв.
С вкл. данък
GB Z490 4xDDR4 6xSATA3 RAID HDMI 3xM2 1XGLAN 3xPCIEx16 WiFi
GIGABYTE
Z490 AORUS MASTER

GB Z490 AORUS MASTER

Техническо описание

Warranty
36 Months
Процесор
Support for 10th Generation Intel Core™ i9 processors/Intel Core™ i7 processors/Intel Core™ i5 processors/Intel Core™ i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1200 package, L3 cache varies with CPU
LAN
Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Чипсет
Intel Z490 Express Chipset
Audio
Realtek ALC1220-VB codec,The front panel line out jack supports DSD audio., ESS ES9118EQ DAC chip, Support for DTS:X Ultra, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out
Other
Intel Wi-Fi 6 AX201, WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.0, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate,Actual data rate may vary depending on environment and equipment.
I/O
1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 1 x HDMI port, 1 x USB Type-C™ port, with USB 3.2 Gen 2 support, 3 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x RJ-45 port, 1 x o
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16),For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot., 1 x PCI Express x16 slot, running at x8 (PCIEX8),The PCIEX8 slot shares bandw
OS
Support for Windows 10 64-bit
Connectors
1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers,
BIOS
2 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory type
Intel Core™ i9/i7 processors: Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.)
Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2P_SB), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2242/2260/22
Form factor
ATX Form Factor, 30.5cm x 24.4cm
Graphics
Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz,Support for HDMI 1.4 version and HDCP 2.3., Maximum shared memory of 512 MB
