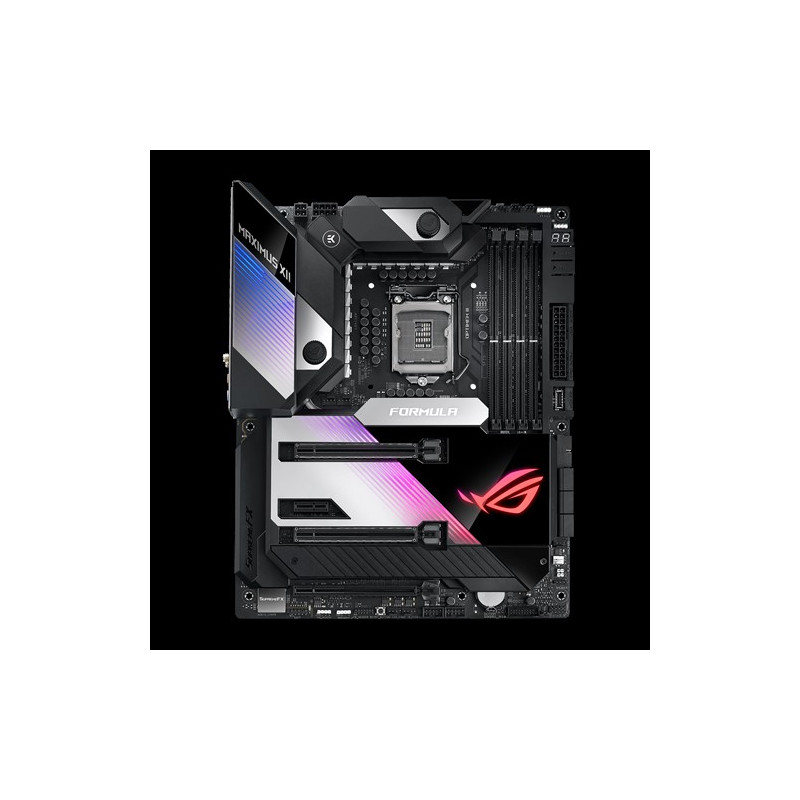

ASUS ROG MAXIMUS XII FORMULA

Техническо описание

Warranty

36 Months

Процесор

Intel Socket 1200 for 10th Gen Intel Core™, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

LAN

Intel I225-V 2.5Gb Ethernet, Marvell AQtion AQC107 10Gb , ASUS LANGuard

Чипсет

Intel Z490

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220, - Impedance sense for front and rear headphone outputs, - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, - High quality 120 dB SNR stereo playback o

Other

Intel Wi-Fi 6 AX201, 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO, Supports up to 2.4Gbps max data rate, Supports dual band frequency 2.4/5 GHz, Supports channel bandwidth: HT20/HT40/HT80/HT160, Supports CNVI interface,Bluetooth v5.1

I/O

1 x Intel I225-V 2.5Gb Ethernet, 1 x PS/2 keyboard/mouse combo port(s), 4 x USB 3.2 Gen 2, 6 x USB 3.2 Gen 1, 1 x Optical S/PDIF out, 1 x Clear CMOS button(s), 1 x USB BIOS FlashBack™ Button(s), 1 x ASUS Wi-Fi Module, 5 x Gold-plated audio jacks, 1 x Aqua

Expansion Slots

Intel 10th Gen Processors, 2 x PCIe 3.0 x16 (x16 or dual x8) 1, Intel Z490 Chipset, 1 x PCIe 3.0 x16 (x4 mode) 2, 1 x PCIe 3.0 x1 3

OS

MS Windows

Connectors

1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x H_AMP fan connector, 1 x W_PUMP+ connector, 1 x W_IN header, 2 x W_OUT header, 3 x W_FLOW header, 1 x AAFP connector, 2 x Aura RGB Strip Head

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Storage

Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports, Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA - PCIE 3.0 x 4 mode)4, 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices

Form factor

ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
