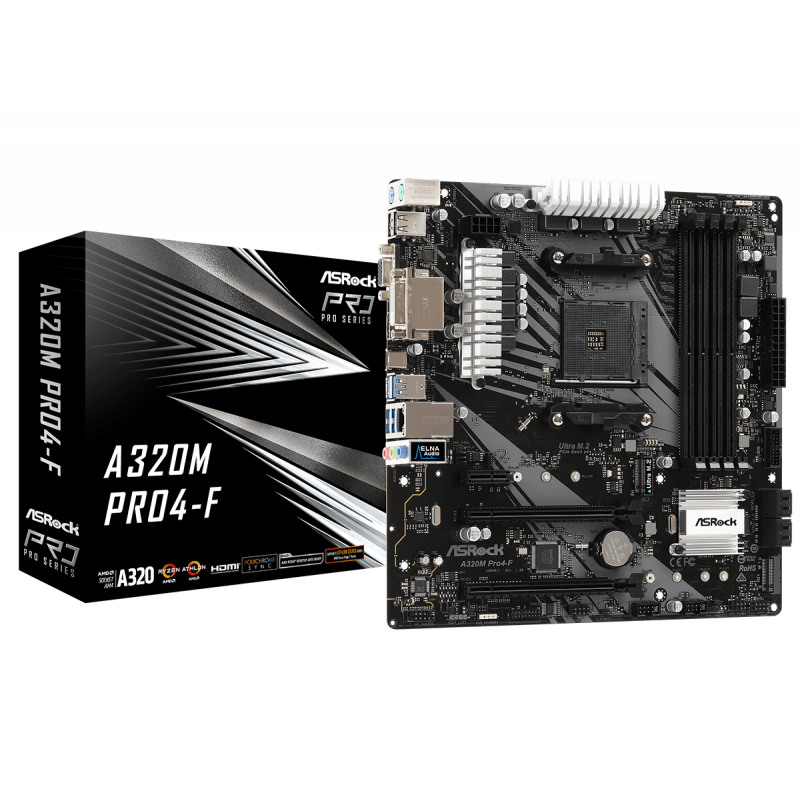

ASROCK A320M PRO4-F /AM4

129,84 лв.
С вкл. данък
ASROCK B320 4xDDR4 4xSATA3 RAID HDMI DVI VGA 2xM2 GLAN 2xPCIEx16 1xPCIEx1
ASROCK
A320M PRO4-F

ASROCK A320M PRO4-F /AM4

Техническо описание

Warranty
36 Months
Процесор
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge), - Digi Power design, - 9 Power Phase design
LAN
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s, - Realtek RTL8111GR, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports LAN Cable Detection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
Чипсет
- AMD Promontory A320
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - ELNA Audio Caps
I/O
- 1 x PS/2 Mouse Port, - 1 x PS/2 Keyboard Port, - 1 x D-Sub Port, - 1 x DVI-D Port, - 1 x HDMI Port, - 2 x USB 2.0 Ports (Supports ESD Protection), - 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection), - 4 x USB 3.1 Gen1 Ports (Supports ESD Protectio
Expansion Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge): - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode), - 1 x PCI Express 2.0 x16 Slot (PCIE3: x2 mode), AMD 7th A-Series APUs: - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode), - 1 x PCI Express
OS
MS Windows
Connectors
1 x COM Port Header, - 1 x TPM Header, - 1 x Power LED and Speaker Header, - 1 x RGB LED Header, - 1 x Addressable LED Header, - 1 x AMD Fan LED Header, - 1 x CPU Fan Connector (4-pin), - 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) (Smart Fan Speed
BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - DRAM Voltage multi-adjustment
Memory type
- Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC - non-ECC, un-buffered memory, - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC) / 2933(OC) / 2
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Rave
Form factor
- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm - Solid Capacitor design
Graphics
- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU, - Integrated AMD Radeon™ R-Series Graphics in A-series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB., - Three graphics output opt
