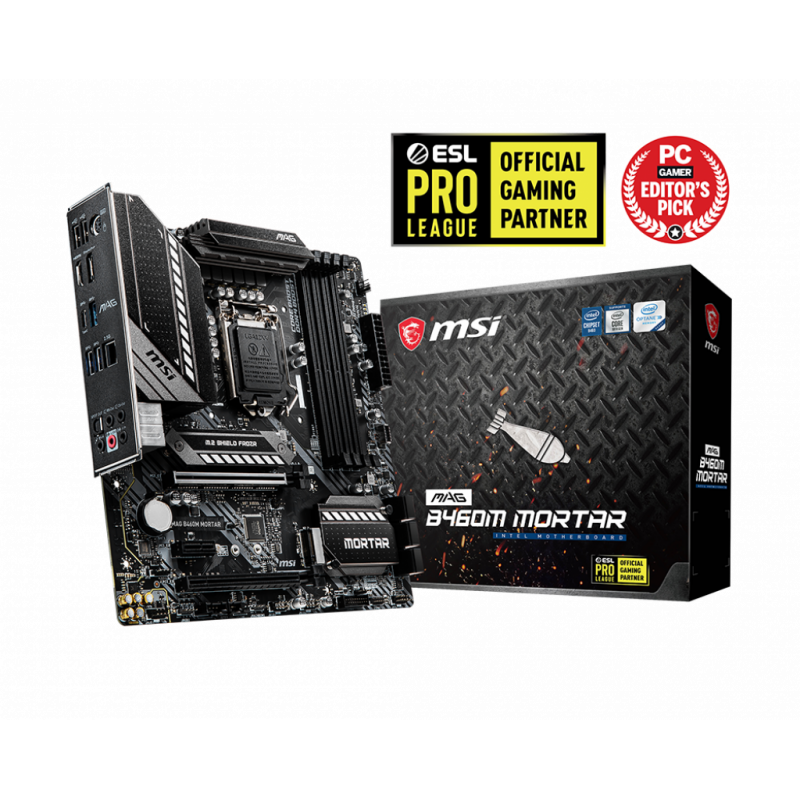

MSI MAG B460M MORTAR

231,20 лв.
С вкл. данък
MSI B460 4xDDR4 6xSATA3 RAID HDMI DP 2xM2 GLAN 2xPCIEx16 1xPCIEx1
Msi
911-7C82-001

MSI MAG B460M MORTAR

Техническо описание

Warranty
36 Months
Процесор
Supports 10th Gen Intel Core™ and Pentium Gold / Celeron processors for LGA1200 socket 1 2
LAN
1x Realtek RTL8125B 2.5G LAN Controller
Чипсет
Intel B460 Chipset
Audio
Realtek ALC1200 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
I/O
PS/2 Combo Port, DisplayPort, USB 3.2 Gen 1 5Gbps(Type-A), 2.5G LAN Port, HD Audio Connectors, USB 2.0 Ports, HDMI Port, USB 3.2 Gen 1 5Gbps(Type-C), USB 3.2 Gen 1 5Gbps(Type-A), Optical S/PDIF OUT
Expansion Slots
1x PCIe 3.0 x16 slot (from CPU), 1x PCIe 3.0 x16 slot (from PCH, supports x4 mode), 1x PCIe 3.0 x1 slot (from PCH)
Connectors
1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports), 1x USB 3.2 Gen 1 5Gbps Type-C connector, 2x USB 2.0 connectors (support addi
BIOS
1x 128 Mb flash, UEFI AMI BIOS, ACPI 6.2, SM BIOS 3.2 ∙Multi-language
Memory type
4x DDR4 memory slots, support up to 128GB 1, Intel Core™ i7/i9, Support DDR4-2933 Memory (Max.), Intel Core™ i5 (Below), Supports DDR4-2666 Memory (Max.), Supports Dual-Channel mode, Supports non-ECC, un-buffered memory, Supports Intel Extreme Memory Prof
Storage
Intel B460 Chipset, 6x SATA 6Gb/s ports 1, 2x M.2 slots (Key M), M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices1, M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices, Intel Optane™ Memory Ready2, Supports In
Form factor
mATX Form Factor, 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
Graphics
1x HDMI port, supports a maximum resolution of 4096x2160 @ 30Hz, 1x DisplayPort port supports a maximum resolution of 4096 x 2304 @ 60Hz
