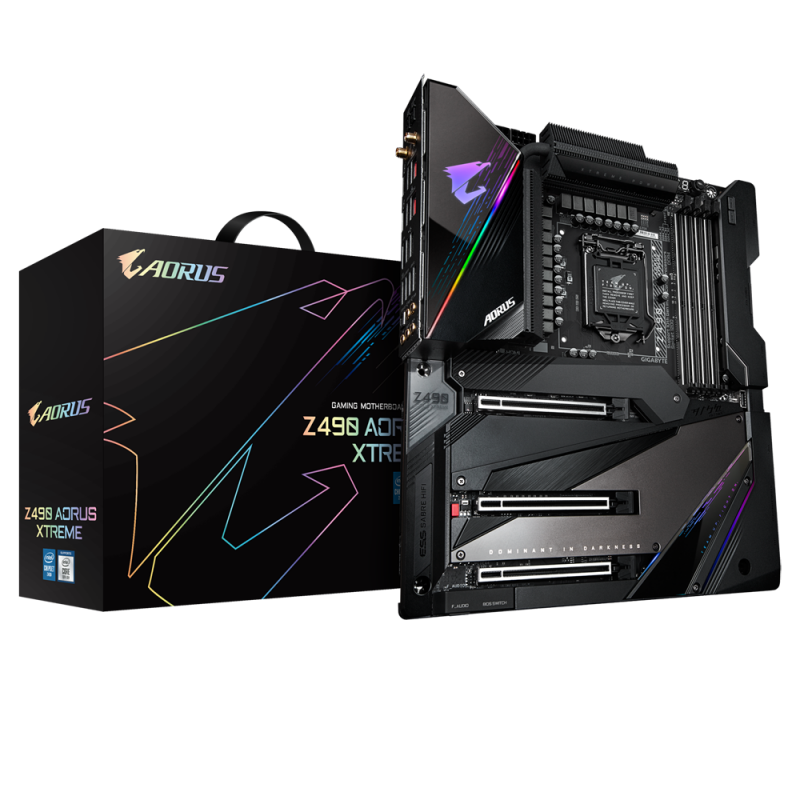

GB Z490 AORUS EXTREME LGA1200

Техническо описание

Warranty

36 Months

LAN

1 x Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) (LAN1), 1 x Intel 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (LAN2)

Audio

Realtek ALC1220-VB codec+ESS ES9218P DAC (front panel audio), Realtek ALC1220-VB codec+ESS ES9018K2M DAC+TI OPA1622 operational amplifier (rear panel audio), Support for DTS:X Ultra, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out

Other

Intel Wi-Fi 6 AX201, WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band, BLUETOOTH 5.1, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

I/O

1 x Q-Flash Plus button, 1 x Clear CMOS button, 2 x SMA antenna connectors (2T2R), 2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.2 Gen 2 support), 4 x USB 3.2 Gen 2 Type-A ports (red), 2 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x HDMI

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16),For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot., 1 x PCI Express x16 slot, running at x8 (PCIEX8),The PCIEX8 slot shares bandw

OS

Support for Windows 10 64-bit

Connectors

1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x water cooling CPU fan header, 4 x system fan headers, 2 x system fan/water cooling pump headers, 2 x addressable LED strip headers, 2 x RGB LED strip headers,

BIOS

2 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, Support for DualBIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory type

Intel Core i9/i7 processors: Support for DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) /

Storage

1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2A_CPU), 1 x M.2 connector (Socket 3, M key, type 2242/2280/22110 SATA and PCIe x4/x2 SSD support)(M2M_PCH), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280

Form factor

E-ATX Form Factor, 30.5cm x 27.1cm

Graphics

Integrated Graphics Processor+Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors (USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 5120 x 2880@60 Hz with 24 bpp,Because of the limited I/O

Chipset

Intel Z490 Express Chipset

CPU's supported

Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
