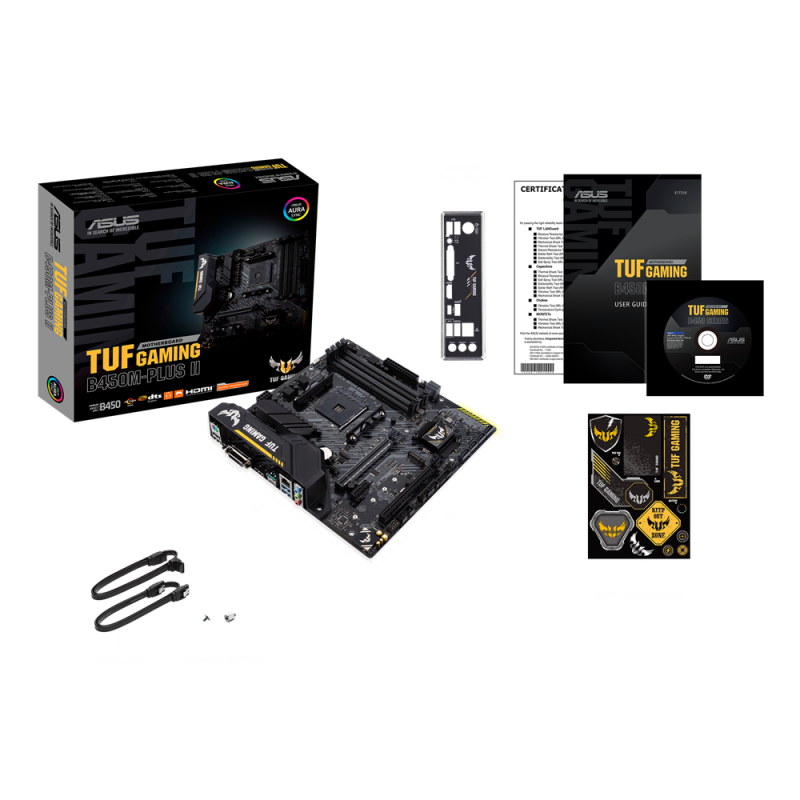

ASUS TUF GAMING B450M-PLUS II

226,63 лв.
С вкл. данък
ASUS TUF GAMING B450M-PLUS II

Техническо описание

Warranty
36 Months
LAN
Realtek RTL8111H 1Gb Ethernet, TUF LANGuard
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC, - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, Audio Feature : - Exclusive DTS Custom for GAMING Headsets., - Audio cover, - Audio
I/O
1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.2 Gen 2 (teal blue)Type-A,, 2 x USB 3.2 Gen 1 (blue) Type-A, 1 x USB 3.2 Gen 1 (black) Type-C, 2 x USB 2.0, 3 x Audio jack(s), 1 x BIOS FlashBack Button(s)
Expansion Slots
3rd/2nd/1st Gen AMD Ryzen Processors, 1 x PCIe 3.0/2.0 x16 (x16 mode), 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors, 1 x PCIe 3.0/2.0 x16 (x8 mode), Athlon with Radeon Vega Graphics Processors, 1 x PCIe 3.0/2.0 x16 (max at x4 mode), AMD
OS
Windows 10 64-bit, Windows 7 64-bit 2
Connectors
1 x CPU Fan connector(s), 2 x Chassis Fan connector(s), 1 x Aura RGB Strip Header, 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Memory type
3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O
Storage
Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports, 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support1, Athlon
Form factor
mATX Form Factor, 9.6inch x 9.6inch ( 24.4cm x 24.4cm )
Graphics
Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, 1x HDMI 2.0b, 1x DVI-D
Chipset
AMD B450
CPU's supported
AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors
