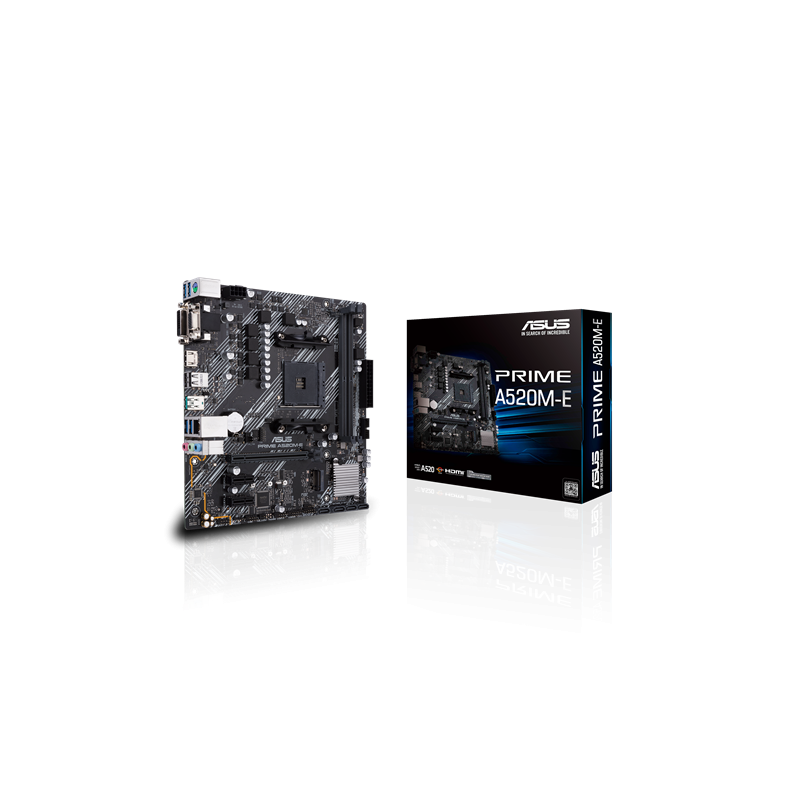

ASUS PRIME A520M-E / AM4

Техническо описание

Warranty

36 Months

LAN

Realtek RTL8111H 1Gb Ethernet, ASUS LANGuard

Audio

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC , - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, Audio Feature : - LED-illuminated design, - Audio Shielding, - Dedicated audio PCB

I/O

1 x PS/2 keyboard/mouse combo port(s), 1 x DVI-D, 1 x D-Sub, 1 x HDMI, 1 x LAN (RJ45) port(s), 1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A), 4 x USB 3.2 Gen 1 (blue) Type-A, 2 x USB 2.0, 3 x Audio jack(s)

Expansion Slots

AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors, 1 x PCIe 3.0 x16 (x16 mode), AMD A520 Chipset, 2 x PCIe 3.0 x1

OS

Windows 10 64-bit

Connectors

1 x CPU Fan connector(s), 1 x Chassis Fan connector(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/226

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

2 x DIMM, Max. 64GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory , Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU.

Storage

Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports, AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors : 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support, AMD A520 Chipset : 4 x

Form factor

mATX Form Factor, 8.9inch x 8.7inch ( 22.6cm x 22.1cm )

Graphics

1x D-Sub, 1x DVI-D, 1x HDMI 2.1(4K@60HZ)

Chipset

AMD A520

CPU's supported

AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
