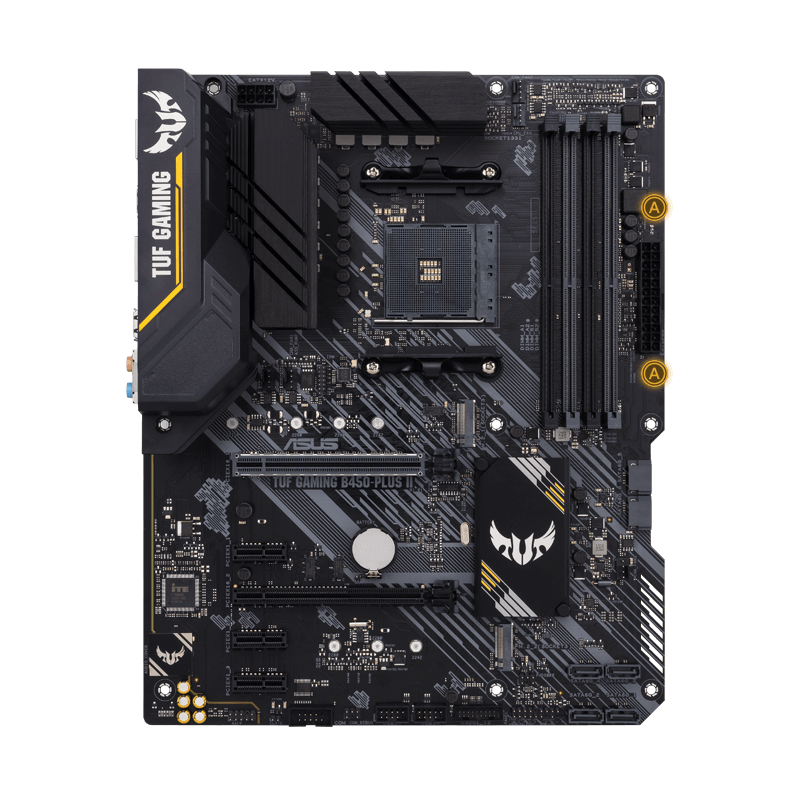

ASUS TUF GAMING B450-PLUS II

Техническо описание

Warranty

36 Months

LAN

Realtek L8200A, TUF LANGuard

Audio

Realtek ALC S1200A 8-Channel High Definition Audio CODEC 4, Audio Feature : - Exclusive DTS Custom for GAMING Headsets., - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, - Dedicated audio PCB l

I/O

1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 2 x USB 3.2 Gen 2 (1 x USB Type-C+1 x Type-A), 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0, 5 x Audio jack(s), 1 x BIOS FlashBack Button(s)

Expansion Slots

3rd/2nd/1st Gen AMD Ryzen Processors, 1 x PCIe 3.0/2.0 x16 (x16 mode), 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors, 1 x PCIe 3.0/2.0 x16 (x8 mode), AMD Athlon with Radeon Vega Graphics Processors, 1 x PCIe 3.0/2.0 x16 (x4 mode), AMD B45

OS

Windows 10 64-bit, Windows 7 64-bit 5

Connectors

1 x CPU Fan connector(s) (1 x 4 -pin), 3 x Chassis Fan connector(s) (3 x 4 -pin), 1 x AIO_PUMP connector (1 x 4 -pin), 2 x Aura RGB Strip Header, 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin), 2 x USB 2

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory type

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, 4 x DIMM, Max. 128GB, DDR4 4400(O.C)/3533(O.C)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory,

Storage

3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA - PCIE 3.0 x 4 mode)2, AMD Athlon with Radeon Vega Graphics Processors : 1 x M.2 Socket

Form factor

ATX Form Factor, 12.0inch x 9.6inch ( 30.5cm x 24.4cm )

Graphics

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors, 1x DisplayPort 1.2, 1x HDMI 2.0b

Chipset

AMD B450

CPU's supported

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics Processors
