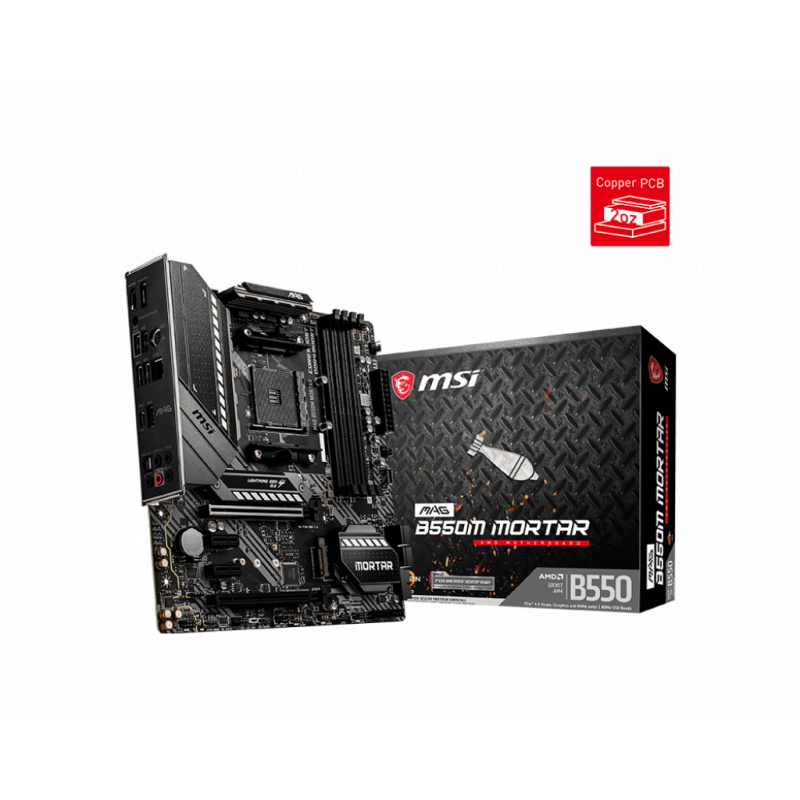

MSI MAG B550M MORTAR / AM4

317,16 лв.
С вкл. данък
MSI MAG B550M MORTAR / AM4

Техническо описание

Warranty
36 Months
LAN
1x Realtek RTL8125B 2.5Gbps LAN controller
Audio
Realtek ALC1200 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output
I/O
DisplayPort, PS/2 Combo Port, 2.5G LAN Port, USB 3.2 Gen 2 10Gbps (Type-A), HD Audio Connectors, HDMI Port, Flash BIOS Button, USB 2.0 port, USB 3.2 Gen 1 5Gbps (Type-A), USB 3.2 Gen 2 10Gbps (Type-C), Optical S/PDIF OUT
Expansion Slots
1x PCIe 3.0/ 4.0 x16 slot (PCI_E1) 1, 1x PCIe 3.0 x16 slot (PCI_E4), supports x4 mode 2, 2x PCIe 3.0 x1 slots
OS
Support for Windows 10 64-bit
Connectors
1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 6x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 2x USB 2.0 connec
Memory type
4x DDR4 memory slots, support up to 128GB 1, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE, 1DPC 1R m
Storage
AMD B550 Chipset, 6x SATA 6Gb/s ports, 2x M.2 slots (Key M), M2_1 slot (from AMD processor), Supports PCIe 4.0/ 3.0 x4 1, Supports SATA 6Gb/s, Supports 2242/ 2260/ 2280 storage devices, M2_2 slot (from AMD B550 chipset), Supports PCIe 3.0x4, Supports 2242
Form factor
Micro-ATX Form Factor, 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Graphics
1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2, 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1, Maximum shared memory of 16 GB
Chipset
AMD B550 Chipset
CPU's supported
Supports AMD Ryzen 5000 - 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G - Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
