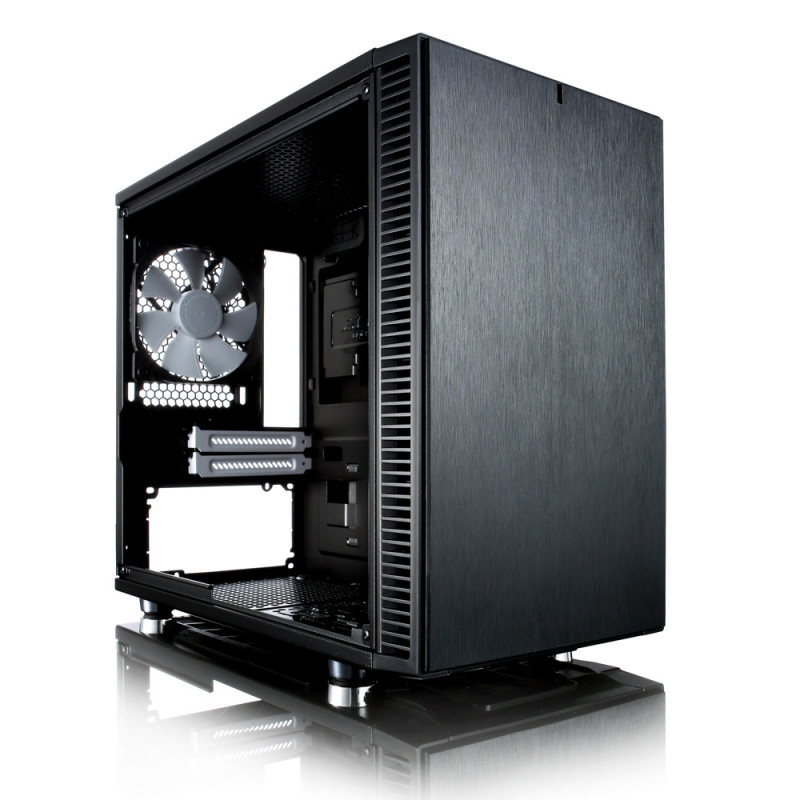

Fractal Design Define Nano S Mini-ITX case - black

128,03 лв.
С вкл. данък
  • Ultra-premium and quiet Mini-ITX case in black with noise dampening
  • support for 280 mm radiators as well as pumps and AGBs & for graphics cards up to 315 mm
FRACTAL DESIGN
FD-CA-DEF-NANO-S-BK

Product information - Define Nano S Mini-ITX Gehäuse - schwarz

Ultra-premium and quiet Mini-ITX case in black with noise dampening, support for 280 mm radiators as well as pumps and AGBs & for graphics cards up to 315 mm TheFractal Design Define Nano S is the logical continuation of a highly-esteemed and sought after series of designer cases and represents like few other Mini-ITX towers the best of sleek aesthetics paired with premium technology. In terms of design features, the cases emphasise smooth lines, brushed aluminium-look plastic, angular accents and white highlights on the inside. The Define Nano S offers, for a Mini-ITX case, a range of options for installing custom watercooling.

The Fractal Design Define Nano S at a Glance:

  • Noise dampening in front- and side panels
  • Removable insulated sections in the roof that are removable
  • Space for a 280 mm radiator in the front
  • Mounting system for reservoirs in front of the motherboard
  • Base plate with mounting holes for pumps
  • Up to 315 mm long graphics cards
  • Magnetic front filter and removable underside filter

Define Nano S: Noise-Insulated Mini-ITX Case for Custom Watercooling

As all cases in the Define series, the Define Nano S is noise insulated. In order to cool the hardware effectively and as quietly as possible, the case supports the installation of custom watercooling gear. The Nano S offers a base plate for mounting pumps, while reservoirs can be mounted in front of the motherboard. At the front, the case supports a 280 mm radiator with dimensions measuring up to 147 x 312 mm. A real rarity in cases of this size.

Graphics cards can be up to 31,5 cm long, although only when no radiator is installed in the front. Since there is relatively little space in between the graphics card and the PSU, only cards up to dual-slot in cooler size can be used. CPU coolers can be up to 163 mm tall.

The insulated covers in the roof can be removed in order to install additional fans or a radiator in the roof. Although, this does means the motherboard with its RAM modules cannot be over 35 mm in size. The installation of custom- or AiO watercooling is supported in the Nano S, although this demands a degree of planning and experience.

Two SSDs can be attached to the back of the motherboard tray, and a storage drive (2,5- or 3,5") can be installed using a bracket to the front of the SSDs. An additional HDD or SSD can be installed in front of the PSU on the pump bracket.

The I/O panel's controls are located towards the front of the roof and include, among other things, two USB 3.0 ports and two audio jacks. After removing the front panel, users get access to the magnetically attached dust filters. An additional dust filter covers the entire bottom of the case and is likewise removable as needed.

Technical Details:
  • Dimensions: 203 x 330 x 400 mm (W x H x D)
  • Material: Stahl, Kunststoff
  • Weight: approx. 5 kg
  • Colour: Black
  • Form factor: Mini-ITX
  • Total possible fans:
    2x 120/140 mm (front)
    1x 120 mm (rear)
    1x 120 mm (bottom)
    2x 140/ 1x 120 mm (Roof, if MB and RAM not higher than 35 mm)
  • Pre-installed:
    1x 140 mm (Front, Dynamic GP-14, 1.000 RPM)
    1x 120 mm (Rear, Dynamic GP12, 1.200 RPM)
  • Filter: Bottom, Front (removable)
  • Radiator Mountings:
    1x max. 240/280 mm (Front, max. 147 x 312 mm)
    1x max. 240 mm (Front, if MB and RAM not higher than 35 mm)
    1x max. 120 mm (Bottom, height max. 85 mm, length max. 160 mm)
    1x 120 mm (Rear, max. width 125 mm)
  • Drive Bays:
    2x 2,5" (internal)
    2x 3,5/2,5" (internal)
  • PSU: 1x Standard ATX (optional)
  • Expansion slots: 2
  • I/O-Panel:
    2x USB 2.0
    1x USB 3.0
    1x Reset Button
    1x Power Button
    1x HD Audio In/Out
  • Max GPU length: max. 315 mm (max. dual-slot cooler)
  • Max CPU cooler height: max. 160 mm
  • Max PSU length: max. 160 mm

Техническо описание

Warranty
24 Months
Цвят
Black
Модел
DEFINE NANO S
Форм фактор
ITX
Dimensions
203 x 330 x 400mm
Weight
5 kg
Other
CPU coolers up to 162mm in height, ATX PSUs up to 160mm deep (shorter PSUs recommended for easier cable management), Graphics cards up to 315mm in length with front fans mounted
Manufacturer
Fractal Design
Materials
-
Mnfr Part #
FD-CA-DEF-NANO-S-BK
Cooling
Cooling system: Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed), Rear: 1 – 120 mm fan (included is 1 Fractal Design Dynamic GP12 fan, 1200 RPM speed), Top: 2 - 120/140 mm fan (not included),Bottom: 1 – 120 mm fan
I/O
2 USB 3.0, Audio in/out
Slots for devices
Drive bay capacity-1x - 3.5” or 2.5” on rear, 1x - 3.5” or 2.5” on multi-bracket (if not used for water pump), 2x - 2.5” dedicated SSD unit positions (maximum thickness 13mm)
Expansion Slots
2
