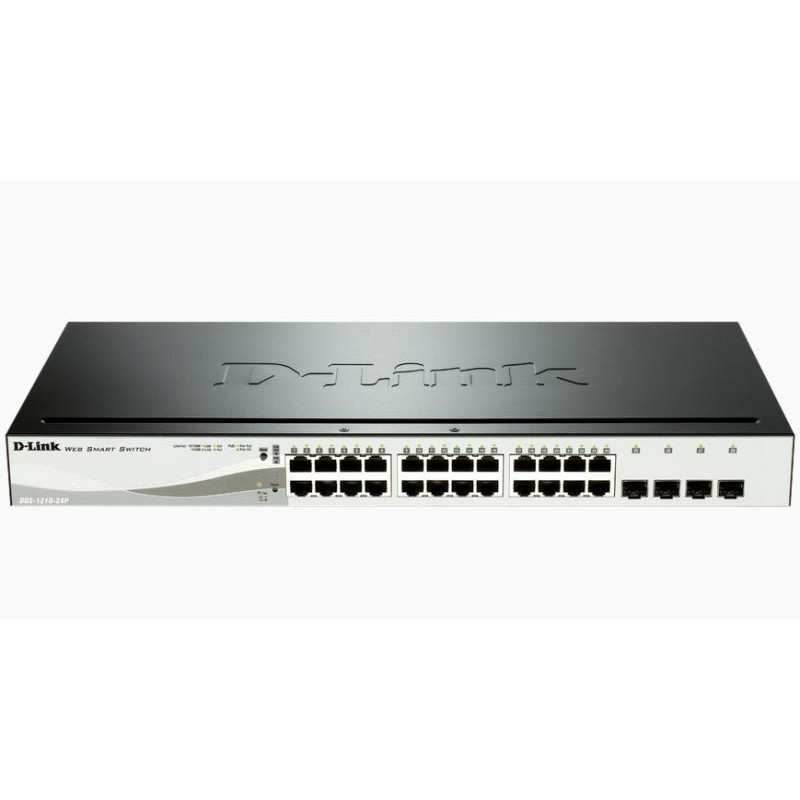

D-Link 24 PoE 10/100/1000 Base-T port + 4 SFP

Техническо описание

Партиден номер

DGS-1210-24P

Номер на модела

24-Port Gigabit PoE Smart Switch with 4 SFP ports

Тип

Managed

Сигурност

Port Security, Broadcast/Multicast/Unicast Storm Control, Static MAC, D-Link Safeguard Engine, DHCP Server Screening, Trusted Host, ARP Spoofing Prevention (Max. 64 entries), SSL (Supports v1/v2/v3, Supports IPv4/IPv6), Traffic Segmentation, IEEE 802.3x

Сигурност

Port Security, Broadcast/Multicast/Unicast Storm Control, Static MAC, D-Link Safeguard Engine, DHCP Server Screening, Trusted Host, ARP Spoofing Prevention (Max. 64 entries), SSL (Supports v1/v2/v3, Supports IPv4/IPv6), Traffic Segmentation, IEEE 802.3x

Размери (Ш, Д, В), mm

441 x 210 x 44

Chassis

Rackmount

Захранване

Internal Universal Power Supply: 100 - 240 VAC, 50/60 Hz

Захранване

Internal Universal Power Supply: 100 - 240 VAC,50/60 Hz

Брой портове

28"

Network type

Gigabit Ethernet

PoE

Yes

Managed Port

No

Суич, тип

Fixed Port

Основни портове, тип

24x10/100/1000Base-T

Power Over Ethernet (PoE)

IEEE 802.3af and IEEE 802.3at PoE Standard, Ports 112 up to 30 W per port, PoE Power Budget: Max. 85 W

Power Over Ethernet (PoE)

IEEE 802.3af and IEEE 802.3at PoE Standard, Ports 112 up to 30 W per port, PoE Power Budget: Max. 85 W

Uplink портове

4xSFP

Свободни (10GB) слотове

No

Управление

Multi-Language Web-based GUI, Simplified CLI, Telnet Server, TFTP Client, SNMP (Supports v1, v2, v3), SNMP Trap, System Log (Max. 500 log entries), IPv6 Neighbor Discovery, Configurable MDI/MDIX, BootP/DHCP Client, DHCP Auto Configuration, RMON v1, SNTP

Stackable

No

Fans

2 fans

Routing

Layer 2 Only

Памет (Flash, RAM)

-

Капацитет за маршрутизиране/превключване, Gbps

56 Gbps

Пропускателна способност, Mpps

41.7 Mpps

MAC адреси

16000 MAC address table size

VLAN (брой, стандарти)

IEEE 802.1Q, VLAN Group: max. 256 static VLAN groups, max. 4094 VIDs, Management VLAN, Asymmetric VLAN, Auto Voice VLAN: max. 10 user defined OUI, max. 8 default OUI, Auto Surveillance VLAN

VLAN (брой, стандарти)

IEEE 802.1Q, VLAN Group: max. 256 static VLAN groups, max. 4094 VIDs, Management VLAN, Asymmetric VLAN, Auto Voice VLAN: max. 10 user defined OUI, max. 8 default OUI, Auto Surveillance VLAN

QoS

802.1p Quality of Service, 8 queues per port, Queue Handling - Strict, Weighted Round Robin (WRR), Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 15 Kbps), CoS based on: 802.1p Priority Queues, DSCP, ToS, IPv6, TCP/UDP port

QoS

802.1p Quality of Service, 8 queues per port, Queue Handling - Strict, Weighted Round Robin (WRR), Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 15 Kbps), CoS based on: 802.1p Priority Queues, DSCP, ToS, IPv6, TCP/UDP port

L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

L3 мрежови стандарти

-

IPv6 functionality

IPv6 Neighbor Discovery

Опция за монтаж

Rackmount
