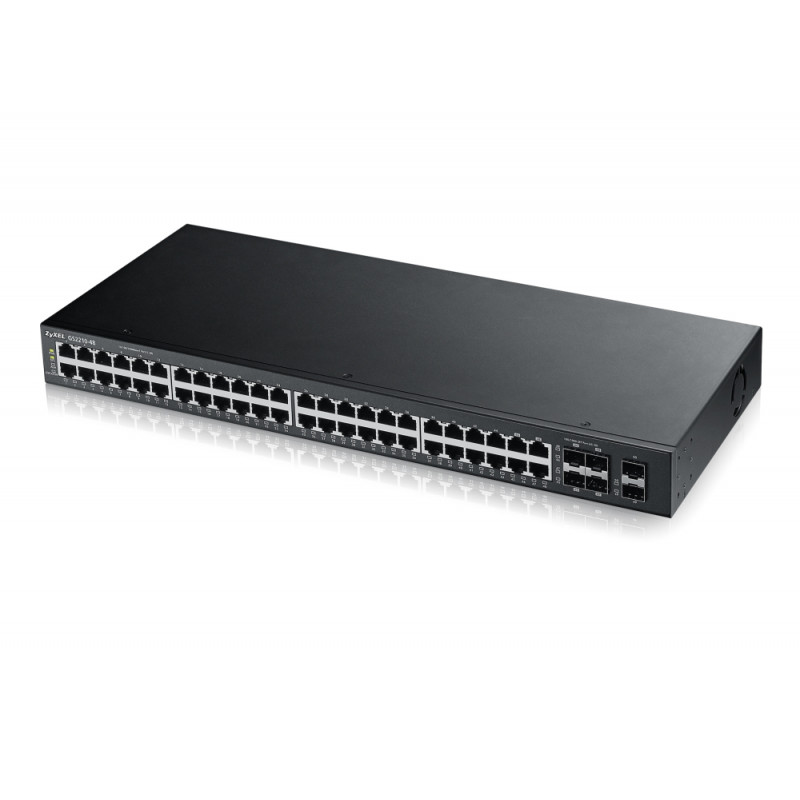

ZyXEL GS2210-48, 50-port Managed Layer2+ Gigabit Ethernet switch, 44x Gigabit metal + 4x Gigabit dual personality (RJ45/open SFP

Техническо описание

Сигурност

802.1X, Port security, Layer 2 MAC filtering, Layer 3 IP filtering, RADIUS, TACACS+, SSH v1/v2, SSL, Intrusion lock, MAC freeze, DHCP snooping, ARP inspection, Static IP-MAC-Port binding, Port isolation, IP source guard, ACL packet filtering (IPv4/IPv6)

Сигурност

802.1X, Port security, Layer 2 MAC filtering, Layer 3 IP filtering, RADIUS, TACACS+, SSH v1/v2, SSL, Intrusion lock, MAC freeze, DHCP snooping, ARP inspection, Static IP-MAC-Port binding, Port isolation, IP source guard,ACL packet filtering (IPv4/IPv6)

Размери (Ш, Д, В), mm

440 x 200 x 45

Захранване

Input Voltage: 100 - 240 V AC, 50/60 Hz, Max. power consumption: 40 (watt)

Захранване

Input Voltage: 100 - 240 V AC, 50/60 Hz, Max. power consumption: 40 (watt)

Брой портове

50

Суич, тип

Fixed Port

Основни портове, тип

44x10/100/1000Base-T

Power Over Ethernet (PoE)

No

Uplink портове

4 dual personality, 2xSFP

Свободни (10GB) слотове

No

Управление

Web interface, Management through Console, Telnet, SNMP, Firmware upgrade by FTP, Configuration saving and retrieving, DHCP, NTP, SNMP v1, v2c, v3, SNMP trap group, RMON (1, 2, 3, 9), ICMP echo/echo reply, IEEE 802.1AB LLDP, IEEE 802.1AB LLDP-MED

Управление

Web interface, Management through Console, Telnet, SNMP, Firmware upgrade by FTP, Configuration saving and retrieving, DHCP, NTP, SNMP v1, v2c, v3, SNMP trap group, RMON (1, 2, 3, 9), ICMP echo/echo reply, IEEE 802.1AB LLDP, IEEE 802.1AB LLDP-MED

Stackable

ZyXEL iStacking™

Stackable

ZyXEL iStacking™,

Fans

Yes

Routing

Layer 2 Only

Памет (Flash, RAM)

-

Капацитет за маршрутизиране/превключване, Gbps

100 Gbps

Пропускателна способност, Mpps

74 Mpps

MAC адреси

16000 MAC address table size

VLAN (брой, стандарти)

802.1Q Static VLANs/Dynamic VLANs: 1 K/4 K, Port-based VLAN, Protocol-based VLAN, IP Subnet-based VLAN, MAC-based VLAN, Private VLAN, Voice VLAN, VLAN ingress fltering, GVRP, LACP algorithm of source/destination IP, L2PT

VLAN (брой, стандарти)

802.1Q Static VLANs/Dynamic VLANs: 1 K/4 K, Port-based VLAN, Protocol-based VLAN, IP Subnet-based VLAN, MAC-based VLAN, Private VLAN, Voice VLAN, VLAN ingress fltering, GVRP, LACP algorithm of source/destination IP, L2PT

QoS

8 hardware queues per port, 802.1p queuing methods: SPQ, WRR, WFQ, Storm control: broadcast, multicast, unknown unicast (DLF), 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable), DiffServ (DSCP), Rate limiting per IP/TCP/UDP per port

QoS

8 hardware queues per port, 802.1p queuing methods: SPQ, WRR, WFQ, Storm control: broadcast, multicast, unknown unicast (DLF), 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable), DiffServ (DSCP), Rate limiting per IP/TCP/UDP per port

L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x flow control, IEEE 802.3az EEE support, IEEE 802.3ad LACP aggregation, IEEE 802.1AB, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X

L3 мрежови стандарти

-

IPv6 functionality

IPv6 over Ethernet, IPv6 addressing architecture, Dual stack, ICMPv6, Path MTU, Minimum path MTU size of 1280, Encapsulation for maximum PMTU of 1500, Neighbor discovery, DHCPv6 relay

Опция за монтаж

Rackmount
