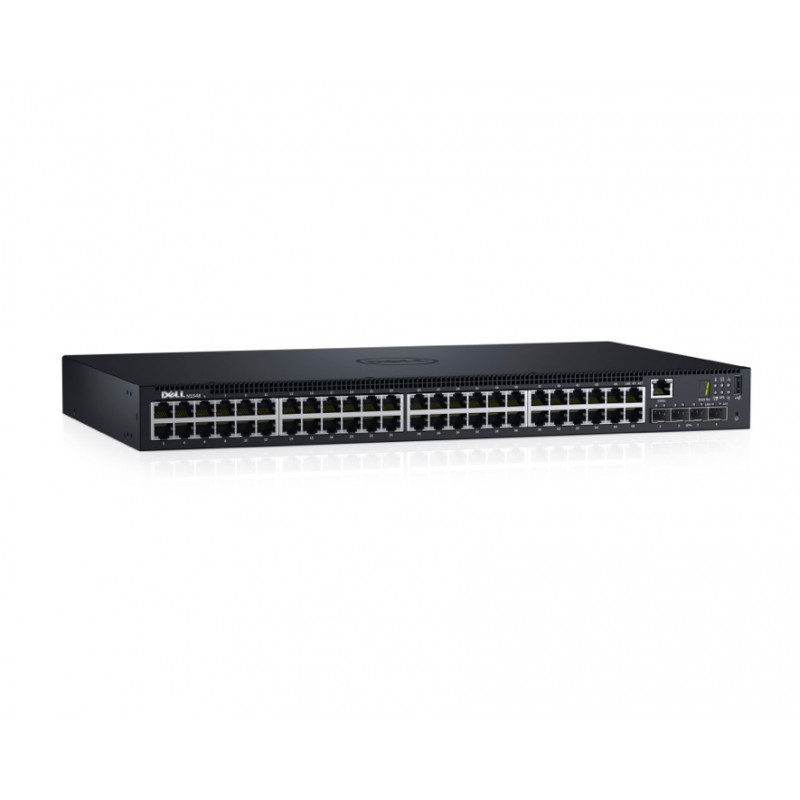

Dell Networking N1548/1 RU/48x-49438
  • Dell Networking N1548/1 RU/48x-49438

Dell Networking N1548/1 RU/48x 1GbE + 4x 10GbE SFP+ fixed ports/

2060,79 лв.
С вкл. данък
Fixed Port
Dell
dnn1548

Техническо описание

Сигурност
AAA authorization, TACACS+ accounting and RADIUS support for comprehensive secure access support
Други
RJ45 console port with RS232 signaling (RJ-45 to female DB-9 connector cable included), USB (Type A) port for configuration via USB flash drive
Размери (Ш, Д, В), mm
440 x 257 x 43
Захранване
Integrated power supply: 100W AC, Optional external power supply RPS720 (sold separately)
Захранване
Integrated power supply: 100W AC, Optional external power supply RPS720 (sold separately)
Брой портове
52
Суич, тип
Fixed Port
Основни портове, тип
48x10/100/1000Base-T
Power Over Ethernet (PoE)
No
Uplink портове
4x10GE SFP
Свободни (10GB) слотове
No
Управление
Management via an intuitive and familiar CLI, embedded web server (GUI), SNMP-based management console application (including Dell OpenManage Network Manager), Telnet or serial connection.
Stackable
Yes
Fans
Redundant variable speed fans
Routing
Layer 3 RIP
Памет (Flash, RAM)
Flash Memory: 256 MB, RAM: 1 GB
Памет (Flash, RAM)
Flash Memory: 256 MB, RAM: 1 GB
Капацитет за маршрутизиране/превключване, Gbps
176 Gbps
Пропускателна способност, Mpps
164 Mpps
MAC адреси
16000 MAC address table size
VLAN (брой, стандарти)
802.1Q VLAN Tagging, Double VLAN Tagging, GVRP, Private VLAN extensions and Private VLAN Edge support, 128 VLAN routing interfaces, 512 VLANs supported, Protocol-based VLANs, Max VLAN interfaces with ACLs applied: 24
VLAN (брой, стандарти)
802.1Q VLAN Tagging, Double VLAN Tagging, GVRP, Private VLAN extensions and Private VLAN Edge support, 128 VLAN routing interfaces, 512 VLANs supported, Protocol-based VLANs, Max VLAN interfaces with ACLs applied: 24
QoS
8 priority queues per port, DiffServ, Flow Based QoS, Port Based QoS
L2 мрежови стандарти
IEEE 802.1AB, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1S, IEEE 802.1v, IEEE 802.1W, IEEE 802.1X, IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3AX, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
L3 мрежови стандарти
Static routing and Routing Information ProtocoL (RIPv1, RIPv2), 128 RIP routing interfaces
L3 мрежови стандарти
Static routing and Routing Information ProtocoL (RIPv1, RIPv2), 128 RIP routing interfaces
IPv6 functionality
General IPv6 protocols are supported
Опция за монтаж
Rackmount
