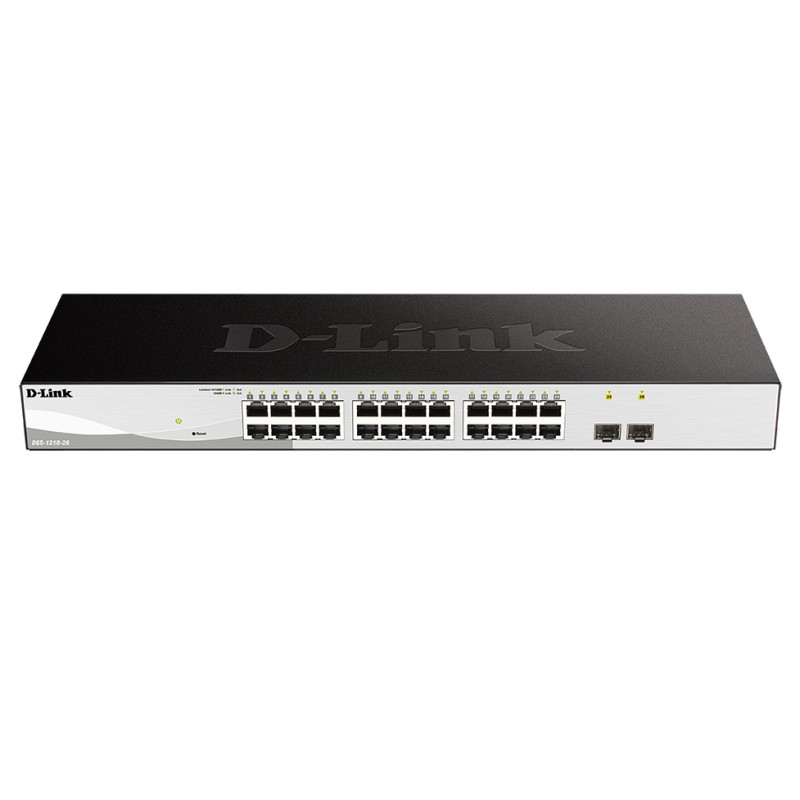

D-Link 26-Port Gigabit Smart Switch with 2 SFP ports

271,89 лв.
С вкл. данък

Техническо описание

Сигурност
Broadcast/Multicast/Unicast Storm Control, D-Link Safeguard Engine, DHCP Server Screening, IP-MAC-Port Binding (Smart Binding), 802.1X Port-based Access Control, ARP Spoofing Prevention, Traffic Segmentation, SSH v2, SSL, Port Security
Размери (Ш, Д, В), mm
440 x 140 x 44
Захранване
Internal Universal Power Supply: 100 - 240 VAC, 50/60 Hz
Захранване
Internal Universal Power Supply: 100 - 240 VAC,50/60 Hz
Брой портове
26
Суич, тип
Fixed Port
Основни портове, тип
24x10/100/1000Base-T
Power Over Ethernet (PoE)
No
Uplink портове
2xSFP
Свободни (10GB) слотове
No
Управление
Web-based GUI, D-Link Network Assistant Utility, Compact CLI, Telnet Server, TFTP Client, Configurable MDI/MDIX, SNMP v1/v2c/v3, SNMP Trap, Backup/Upgrade firmware, Smart Wizard, Upload/Download Configuration file, RMONv1, Trusted Host, ICMP v6, SNTP
Stackable
No
Fans
Fanless design
Routing
Layer 3 Lite
Памет (Flash, RAM)
-
Капацитет за маршрутизиране/превключване, Gbps
52 Gbps
Пропускателна способност, Mpps
38.7 Mpps
MAC адреси
8000 MAC address table size
VLAN (брой, стандарти)
IEEE 802.1Q, VLAN Group: max. 256 static VLAN groups, max. 4094 VIDs, Asymmetric VLAN, Auto Voice VLAN: max. 10 user defined OUI, max. 8 default OUI, Auto Surveillance VLAN
VLAN (брой, стандарти)
IEEE 802.1Q, VLAN Group: max. 256 static VLAN groups, max. 4094 VIDs, Asymmetric VLAN, Auto Voice VLAN: max. 10 user defined OUI, max. 8 default OUI, Auto Surveillance VLAN
QoS
802.1p Quality of Service, 8 queues per port, Queue Handling - Strict, Weighted Round Robin (WRR), Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 16 Kbps), QoS based on: 802.1p Priority Queues, DSCP, ToS, IPv6, TCP/UDP port
QoS
802.1p Quality of Service, 8 queues per port, Queue Handling - Strict, Weighted Round Robin (WRR), Bandwidth Control - Port-based (Ingress/Egress, min granularity 10/100/1000 is 16 Kbps), QoS based on: 802.1p Priority Queues, DSCP, ToS, IPv6, TCP/UDP port
L2 мрежови стандарти
IEEE 802.3, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
L2 мрежови стандарти
IEEE 802.3, IEEE 802.3u, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.1D, IEEE 802.1w,IEEE 802.1s, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X
L3 мрежови стандарти
Static Routing - 124/50 IPv4/6 Static Route Entries
IPv6 functionality
IPv6 Traffic Class, IPv6 Neighbor Discovery (ND), IPv6 address, IPv6 RADIUS Server
Опция за монтаж
Rackmount
