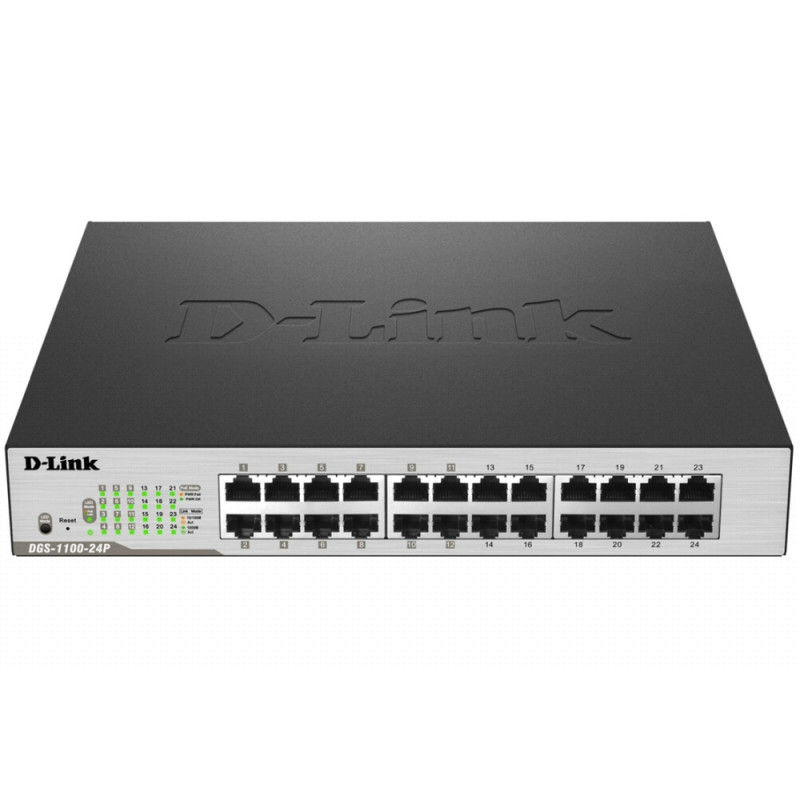

D-Link 24-Port PoE Gigabit Smart Managed Switch

Техническо описание

Сигурност

D-Link Safeguard, Traffic Segmentation, Broadcast/Multicast/Unknown Unicast Storm Control, DoS Attack Prevention, SSL

Модел

Комутатор

Размери (Ш, Д, В), mm

280 x 230 x 44

Захранване

100 to 240 V AC, 50 to 60 Hz internal power supply, Power Consumption: Standby Mode - 8.8 W, Maximum Power Consumption - 131.5 W (PoE on), 19.5 W (PoE off)

Суич, тип

Fixed Port

Основни портове, тип

12 x 10/100/1000 Mbps (PoE)+ 12 x 10/100/1000 Mbps

Power Over Ethernet (PoE)

IEEE 802.3af/at, ports 1 to 12 only, 100 W (30 W max. per PoE port)

Uplink портове

-

Свободни (10GB) слотове

No

Управление

Web-based GUI (supports IPv4/IPv6), Client-based D-Link Network Assistant (DNA)

Stackable

No

Fans

Fanless

Routing

Layer 2 Only

Памет (Flash, RAM)

Flash Memory: 16 MB

Капацитет за маршрутизиране/превключване, Gbps

48 Gbps

Пропускателна способност, Mpps

35.71 Mpps

MAC адреси

8000 MAC address table size

VLAN (брой, стандарти)

Port-based VLAN, 802.1Q tagged VLAN, Auto Surveillance/Voice/Management/Asymmetric VLAN, VLAN Group (Supports 128 static VLAN groups,Max. 4094 VID)

QoS

802.1p Quality of Service, 8 queues per port, Queue handling (Strict, Weighted Round Robin (WRR)), Port-based bandwidth control (rate limiting): Ingress: 16 Kbps, Egress: 16 Kbps

L2 мрежови стандарти

802.3x, 802.3ad, 802.1D STP, 802.1w RSTP, IGMP v1/v2/v3, LLDP

L3 мрежови стандарти

-

IPv6 functionality

-

Опция за монтаж

11-inch desktop (rackmount kit included), 1U height

Общ брой портове

24
