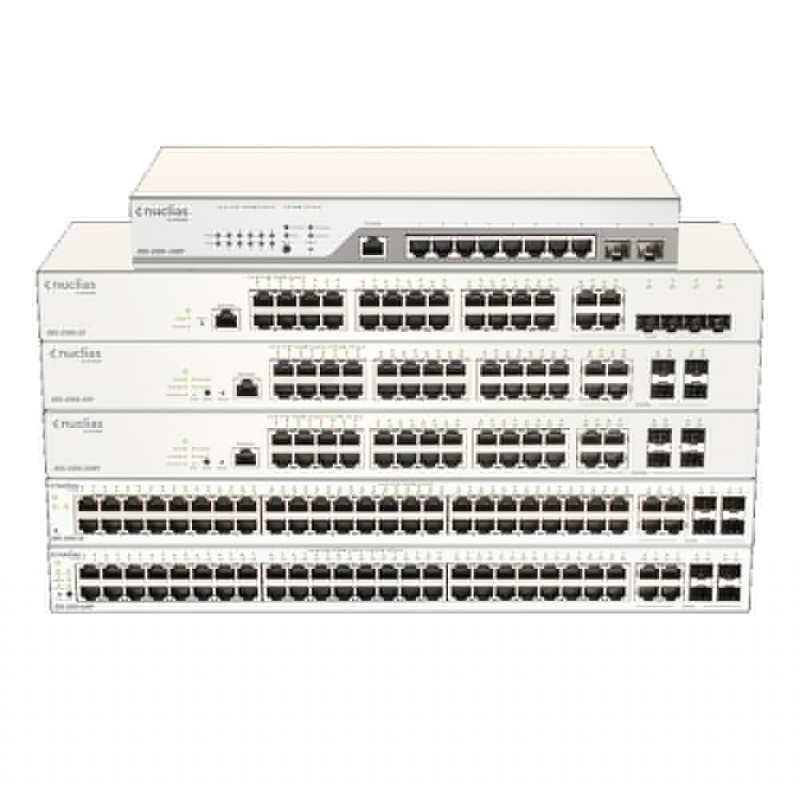

D-Link 28-Port Gigabit PoE+ Nuclias Smart Managed Switch including 4x 1G Combo Ports, 193 W (With 1 Year License)

Техническо описание

Сигурност

SSL, DHCP Server Screening, Port Security, Access Control List (ACL), Max N of Entries: 768

Други

IGMP Snooping

Модел

Комутатор

Размери (Ш, Д, В), mm

440 x 250 x 44

Захранване

Internal (100 to 240 V AC, 50/60 Hz), Power Consumption: 16.6 W Standby, Max: 263.9 W (PoE on), 30.6 W (PoE off)

Суич, тип

Fixed Port

Основни портове, тип

24x 10/100/1000 BASE-T PoE

Power Over Ethernet (PoE)

IEEE 802.3af/at, Ports 1 to 24, 193 W PoE Power Budget

Uplink портове

4x Combo 1000BaseT/SFP ports

Свободни (10GB) слотове

-

Управление

Cloud-based through Nuclias Management, Nuclias mobile app, Zero-touch deployment

Stackable

-

Fans

2x Fans

Routing

-

Памет (Flash, RAM)

32 MB Flash

Капацитет за маршрутизиране/превключване, Gbps

56 Gbps

Пропускателна способност, Mpps

41.7 Mpps

MAC адреси

8K Entries

VLAN (брой, стандарти)

802.1Q Tagged VLAN, Management VLAN,Voice VLAN, VLAN Group, Supports 256 static VLAN groups

QoS

-

L2 мрежови стандарти

IEEE 802.3, IEEE 802.3u/802.3z, IEEE 802.3ab, IEEE 802.3af/802.3at, IEEE 802.3x Flow Control, Supports manual/auto MDI/MDIX configuration, Supports half/full-duplex operation, IEEE 802.3az

L3 мрежови стандарти

-

IPv6 functionality

-

Опция за монтаж

Rackmount

Общ брой портове

28
