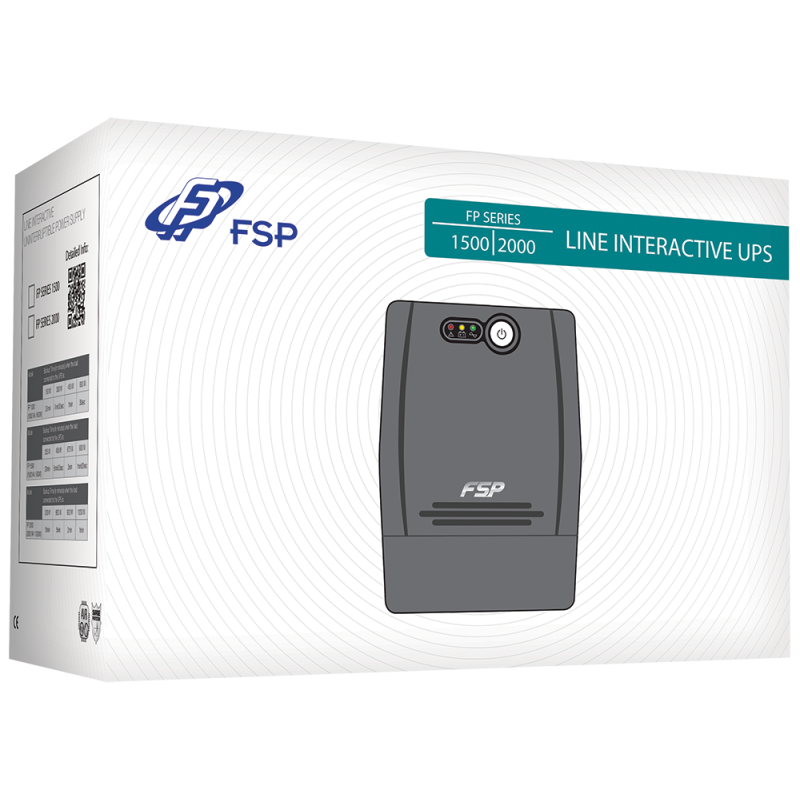

FORTRON FP1500

Техническо описание

Warranty

24 Months

Тип

Line-Interactive

Капацитет батерия

Battery Type - Number:12 V / 9AH x 2, Backup Time (One PC load@120W):25 min., Typical Recharge Time:4-6 hours recover to 90- capacity.

Интерфейс

Outlet Sockets:4x Schuko, Management / Optional USB / RS-232 Port:Supports Windows 98/2000/2003/XP/Vista/2008, Windows 7, Linux and MAC.

Модел

FP1500

Капацитет

1500 VA / 900 W

Dimensions

320 x 130 x 182mm

Manufacturer

FORTRON

Mnfr Part #

PPF9000501

Display

Indicators / AC Mode:Green lighting, Indicators / Battery Mode:Green flashing, Indicators / Fault:No.

Standarts

-

Environment

Overload Protection:Yes, Discharge Protection:Yes, Overcharge Protection:Yes, Operating Environment / Humidity:0-90- RH @ 0-40C (non-condensing), Operating Environment / Noise Level:Less than 40dB.

Input

Available Factory Settings:110 / 120 VAC or 220 / 230 / 240 VAC, Input Voltage Range:81-145 / 162-290 VAC, Input Frequency:60/50 Hz (auto sensing).

Output

Output Voltage:220V nominal, Output Frequency Range:50 Hz or 60 Hz ±1 Hz, Output Transfer Time (Typical):Typical 2-6 ms, Output Waveform (Batt. Mode):Simulated Sine Wave.

Alarms

Alarm / Battery Mode:Sounding every 10 seconds, Alarm / Low Battery:Sounding every second (Batt. Mode), Alarm / Overload:Sounding twice per second, Alarm / Battery Replacement Alarm:Sounding every 2 seconds, Alarm / Fault:Continuously sounding.
