PSU FORTRON HYPER M 500 500W

Техническо описание

Warranty

60 Months

Модел

MF500MS

Форм фактор

ATX 12V V2.4 - EPS 12V V2.92

Features

Effeciency:-gt85-, Input Voltage:200240Vac, Input Current:4A, Frequency:5060Hz, Over-Current Protection:Yes, Over-Voltage Protection:Yes, Short-Circuit Protection:Yes.

Dimensions

150 x 140 x 86 mm

Manufacturer

FORTRON

Mnfr Part #

PPA5005900

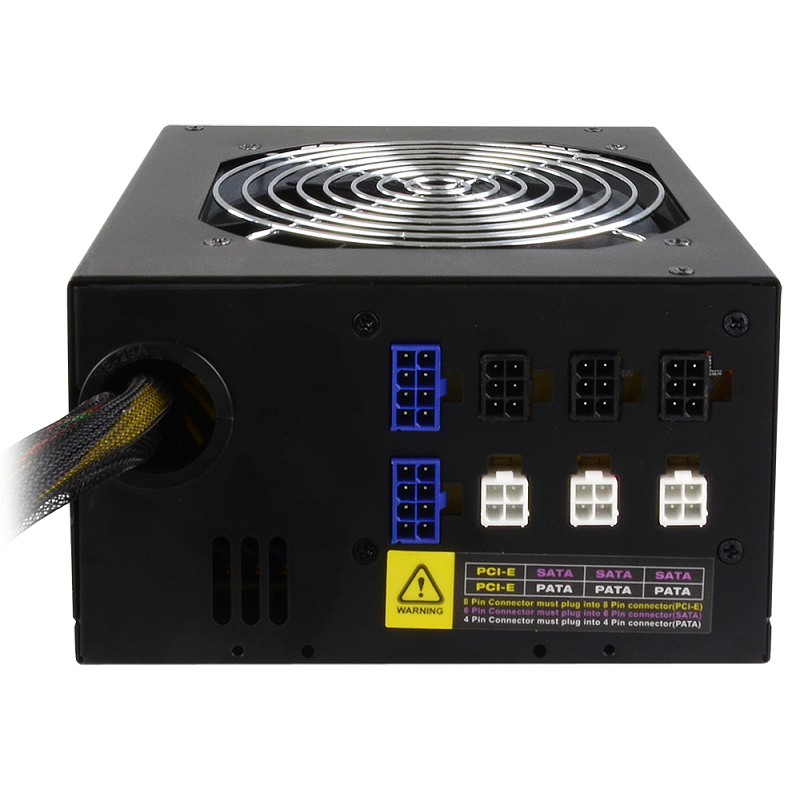

Connectors

ATX12V 24 Pin x 1, ATX12V 20+4 Pin x 0,CPU 8 Pin x 0, CPU 4+4 Pin x 1, CPU 4 Pin x 0, PCI-E 2.0 6+2(8) Pin x 2, PCI-E 2.0 6 Pin x 0, S-ATA x 9, Molex 4 Pin x 4, Floppy 4 Pin x 2, Fan 2 Pin x 0.

PFC Type

Active PFC (0.99)

DC Output

Total continuous power:500 W, Rail/Maximum Power: +3.3 V/20 A/120 W, +5 V/20 A/120 W, +12 V/38 A/456 W, -12 V/0.3 A/18.6 W, +5 VSB/3 A/18.6 W.

AC Input

200-240Vac4A 50Hz

Fan Information

Chassis Fan:120mm, Noise:-lt 19 dBA at 50- loading.

Cable Information

50mm intervals for 4 SATA device installation, Optimized the airflow in case, No-hassle with case side panel.

Safety and Environmental

CE, CB, TUV, C-tick
