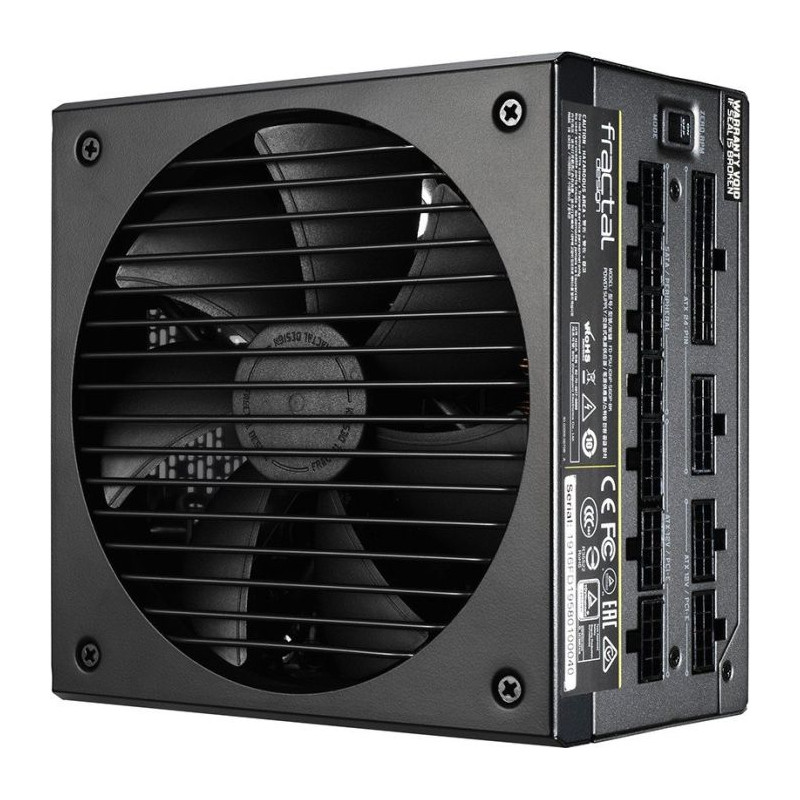

PSU FD 560W ION+ PLATINUM

Техническо описание

Warranty

36 Months

Features

Life expectancy (MTBF) at max output load:100,000 hours

Dimensions

325 x 110 x 210 mm

Connectors

ATX 24-pin:1, ATX12V 4+4 pin / EPS12V 8-pin:1, PCIe 6+2 pin:4, SATA:6, Peripheral:4, ATX 24-pin:600, ATX12V 4+4 pin:700, EPS12V 8-pin:N/A, PCIe 6+2 pin:550+120 mm x2, SATA:400+120+120+120, 650+120, Peripheral:400+120+120+120

DC Output

3.3 V:20A, 5 V:20A, 3.3 V and 5 V combined:110W, 12 V:46.6A, -12 V:0.3A, 5 V Standby (+5 Vsb):3A, Total Power:560W

AC Input

Input voltage:100-240V AC, Input frequency:50-60 Hz, Input current:10A/5A

Fan Information

Customized 140 mm FDB bearing Fractal Design Dynamic Series fan

Cable Information

Modular 24-pin: Braided sleeve UltraFlex wire Others: Flat UltraFlex wire

Safety and Environmental

ErP 2013 (-lt0.45W @230 VAC, 45 mA load on +5Vsb)
