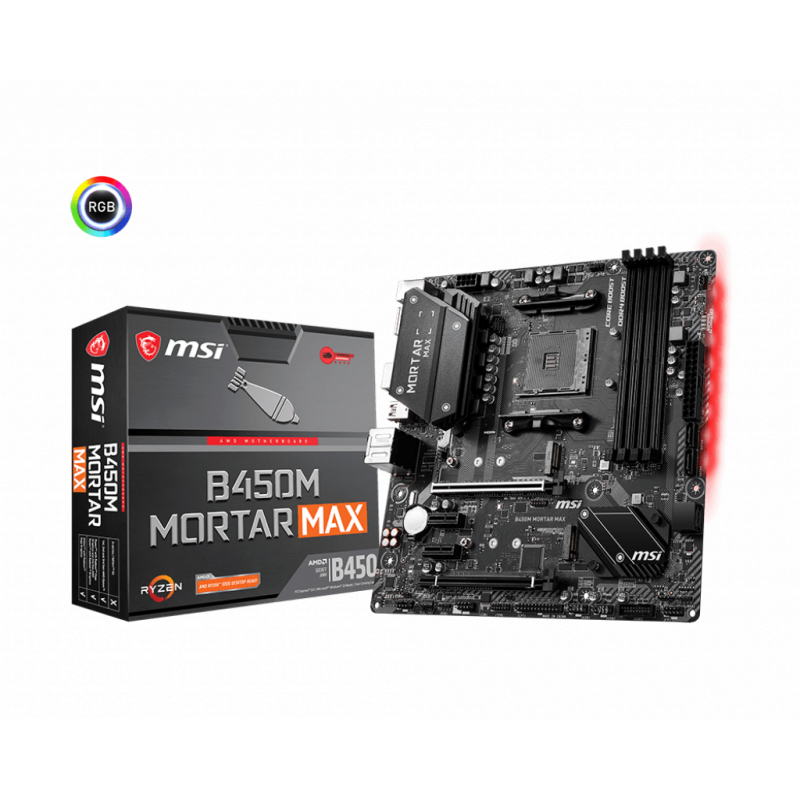

MSI B450M MORTAR MAX

Техническо описание

Warranty

36 Months

Процесор

Supports 1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Desktop Processors for Socket AM4

LAN

1 x Realtek RTL8111H-CG Gigabit LAN controller

Чипсет

AMD B450

Audio

Realtek ALC892 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

I/O

Flash BIOS Button, PS/2 Combo Port, DisplayPort, LAN Port, USB 3.2 Gen2 Type A, HD Audio Connectors, USB 2.0 Ports, HDMI Port, USB 3.2 Gen1, USB 3.2 Gen2 Type C, Optical S/PDIF OUT

Expansion Slots

1 x PCIe 3.0 x16 slot (PCI_E1), Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processors, Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors, Supports x4 speed with AMD Athlon™ with R

OS

Support for Windows 10 64-bit, Support for Windows 7 64-bit

Connectors

1 x 24-pin ATX 12V power connector, 1 x 8-pin ATX 12V power connector, 4 x SATA 6Gb/s connectors, 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports), 1 x USB 3.2 Gen1 connector (support additional 2 USB 3.2 Gen1 ports), 1 x 4-pin CPU fan connecto

CPU сокет

AM4

Memory type

4 x DDR4 memory slots, support up to 128GB ComboPI 1.0.0.3-based and above BIOS are required., Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC), For AMD Ryzen Gen3 (R5/R7/R9), Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3733/ 3866/ 4000/ 4133 MHz (by

Storage

AMD B450 Chipset, 4 x SATA 6Gb/s ports1, 1 x M.2 slots (M2_2, Key M)1, Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices, AMD CPU, 1x M.2 slot (M2_1, Key M)1, Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen™/ Ryzen™ with Radeon™ Vega Graphics and

Form factor

Micro Tower

Graphics

1 x DisplayPort, support a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1,2, 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2
