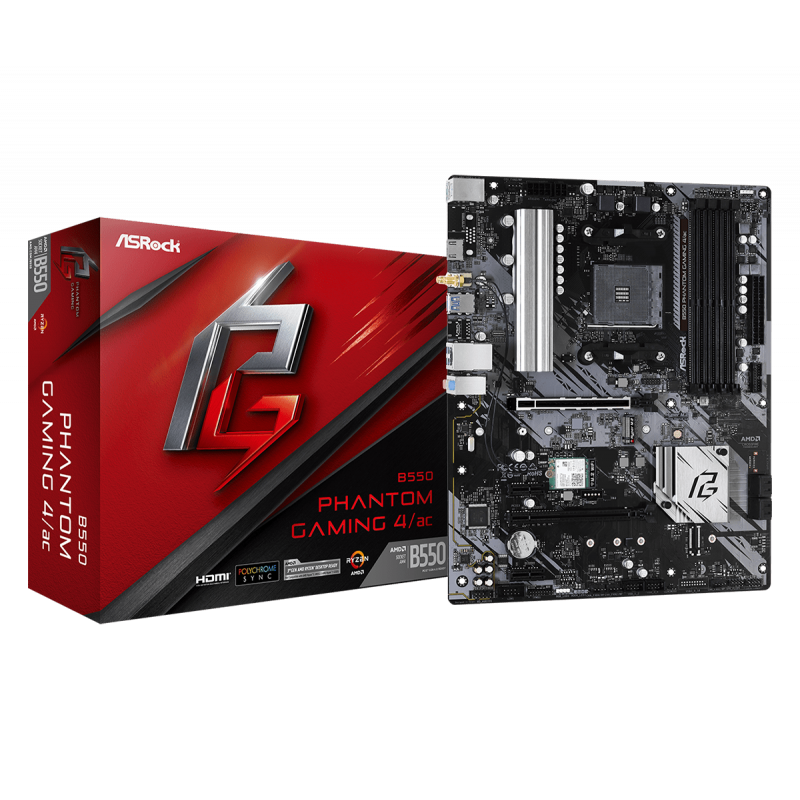

ASROCK B550 PHANTOM GAMING4/AC
ASROCK B550 4xDDR4 4xSATA3 RAID HDMI 2xM2 GLAN 2xPCIEx16 2xPCIEx1
B550 PHANTOM GAMING 4/AC
ASROCK B550 PHANTOM GAMING4/AC
Техническо описание
- Warranty
- 36 Months
- Процесор
- - Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors, - Digi Power design, - 8 Power Phase design
- LAN
- - PCIE x1 Gigabit LAN 10/100/1000 Mb/s, - Realtek RTL8111H, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE
- Чипсет
- - AMD B550
- Audio
- - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel, - Nahimic Audio
- Other
- - Intel 802.11ac WiFi Module, - Supports IEEE 802.11a/b/g/n/ac, - Supports Dual-Band (2.4/5 GHz), - Supports high speed wireless connections up to 433Mbps, - Supports Bluetooth 4.2 + High speed class II
- I/O
- - 2 x Antenna Ports, - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 6 x USB 3.2 Gen1 Ports (Supports ESD Protection), - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), - HD Audio Jacks: Line in / Front Spe
- Expansion Slots
- AMD Ryzen series CPUs (Matisse), - 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode, PCIE3: Gen3 x4 mode), AMD Ryzen series APUs, - 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode, PCIE3: Gen3 x4 mode), - 2 x PCI Express 3.0 x1 Slots, - Supports AMD Quad Cro
- OS
- MS Windows
- Connectors
- - 1 x COM Port Header, - 1 x SPI TPM Header, - 1 x Power LED and Speaker Header, - 2 x RGB LED Headers, - 2 x Addressable LED Headers, - 1 x CPU Fan Connector (4-pin), - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), - 4 x Chassis/Wat
- BIOS
- - 256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
- Memory type
- - Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 32
- Storage
- - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)
- Form factor
- - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm, - Solid Capacitor design, - 2oz Copper PCB
- Graphics
- - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB., - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz, - Supports Au
