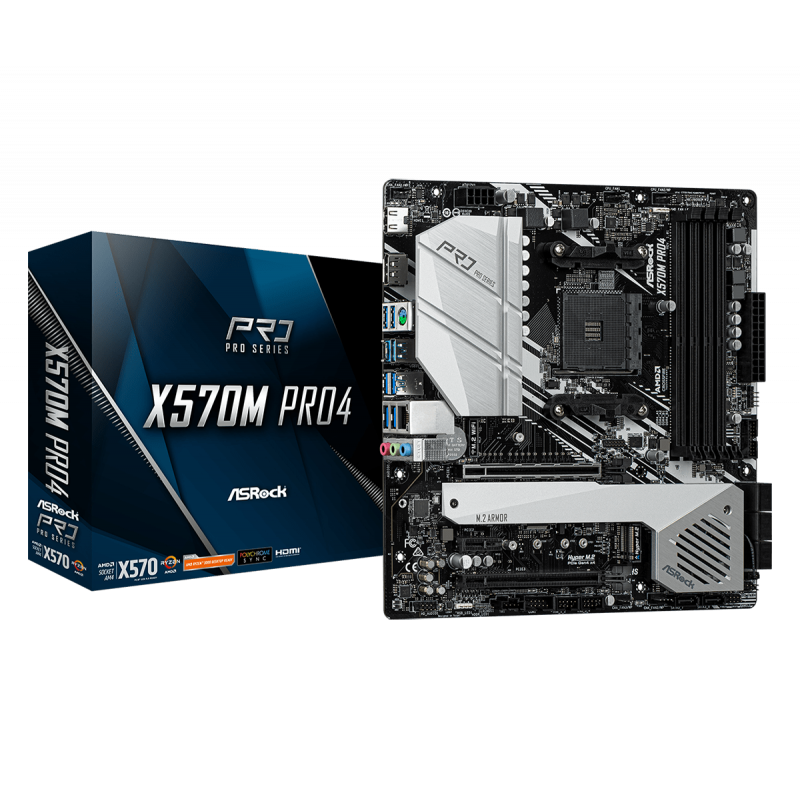

ASROCK X570M PRO4 / AM4

Техническо описание

Warranty

36 Months

Процесор

- Supports AMD AM4 socket Ryzen™ 2000 and 3000 series processors, - Digi Power design, - 10 Power Phase design

LAN

- Gigabit LAN 10/100/1000 Mb/s, - Giga PHY Intel I211AT, - Supports Wake-On-LAN, - Supports Lightning/ESD Protection, - Supports Energy Efficient Ethernet 802.3az, - Supports PXE

Чипсет

- AMD X570

Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec), - Premium Blu-ray Audio support, - Supports Surge Protection, - ELNA Audio Caps, - PCB Isolate Shielding, - Individual PCB Layers for R/L Audio Channel

I/O

- 3 x Antenna Ports (on I/O Panel Shield), - 1 x PS/2 Mouse/Keyboard Port, - 1 x HDMI Port, - 1 x DisplayPort 1.2, - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection), - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports

Expansion Slots

AMD Ryzen series CPUs (Matisse), - 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1), dual at x16 (PCIE1) / x4 (PCIE3)), AMD Ryzen series CPUs (Pinnacle Ridge), - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1), dual at x

OS

MS Windows

Connectors

- 1 x COM Port Header, - 1 x Power LED and Speaker Header, - 1 x AMD Fan LED Header, - 1 x RGB LED Header, - 1 x Addressable LED Header, - 1 x CPU Fan Connector (4-pin), - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), - 3 x Chassis/W

BIOS

256Mb AMI UEFI Legal BIOS with GUI support, - Supports "Plug and Play", - ACPI 5.1 compliance wake up events, - Supports jumperfree, - SMBIOS 2.3 support, - CPU VCORE, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adj

Memory type

- Dual Channel DDR4 Memory Technology, - 4 x DDR4 DIMM Slots, - AMD Ryzen series CPUs (Matisse) support DDR4 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC - non-ECC, un-buffere

Storage

- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug, - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Pi

Form factor

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm, - Solid Capacitor design, - 2oz Copper PCB

Graphics

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU, - DirectX 12, Pixel Shader 5.0, - Shared memory default 2GB. Max Shared memory supports up to 16GB., - Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display c
