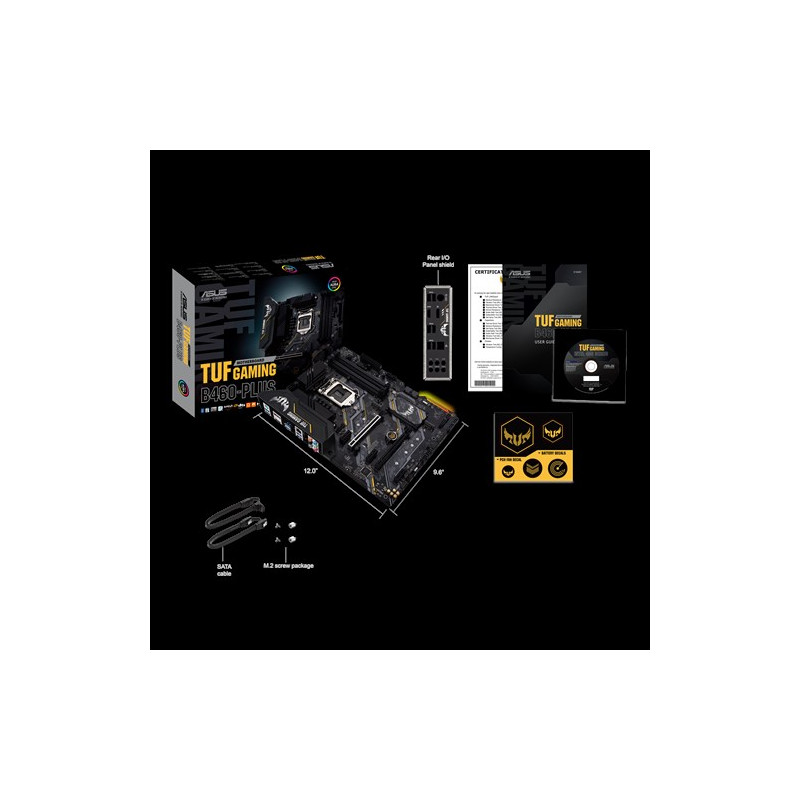

ASUS TUF GAMING B460-PLUS
ASUS TUF GAMING B460-PLUS
Техническо описание
- Warranty
- 36 Months
- LAN
- Intel I219-V 1Gb Ethernet
- Audio
- Realtek ALC S1200A 8-Channel High Definition Audio CODEC, - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, Audio Feature : - Exclusive DTS Custom for GAMING Headsets., - Audio Shielding, - Dedicated a
- I/O
- 1 x PS/2 keyboard/mouse combo port(s), 1 x DisplayPort, 1 x HDMI, 1 x LAN (RJ45) port(s), 6 x USB 3.2 Gen 1 Type-A, 6 x Audio jack(s)
- Expansion Slots
- Intel 10th Gen Processors, 1 x PCIe 3.0 x16 (x16 mode), Intel B460 Chipset, 1 x PCIe 3.0 x16 (x4 mode), 3 x PCIe 3.0 x1
- OS
- Windows 10 64-bit
- Connectors
- 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 2 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 2 x Aura RGB Strip Headers, 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 2 x USB 2.0 connector(s) s
- BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS
- Memory type
- 4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP), OptiMem
- Storage
- Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports, Intel B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA - PCIE 3.0 x 4 mode)1, 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices supp
- Form factor
- ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Graphics
- Integrated Graphics Processor, 1 x DisplayPort 1.4 , 1 x HDMI 1.4b
- Chipset
- Intel B460
- CPU's supported
- Intel Socket 1200 for 10th Gen Intel Core™, Pentium Gold and Celeron ProcessorsSupports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
