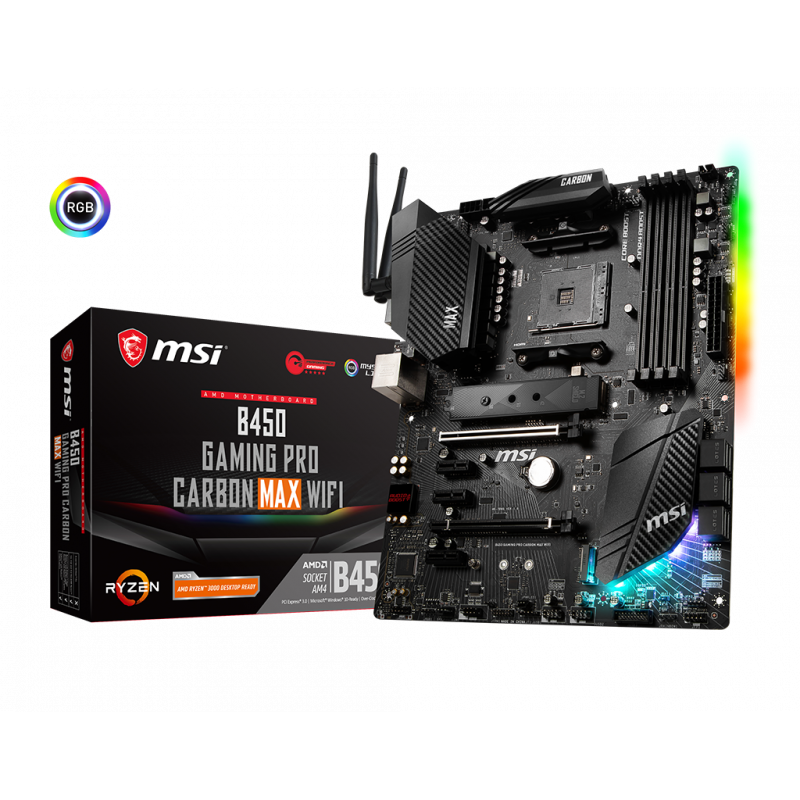

MSI B450 GAM PRO CARBON MAX WF

Техническо описание

Warranty

36 Months

LAN

1 x Intel I211AT Gigabit LAN controller

Audio

Realtek ALC1220 Codec, 7.1-Channel High Definition Audio, Supports Optical S/PDIF output

Other

Intel Dual Band Wireless-AC 9260, Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz,5GHz) up to 1.73 Gbps speed., Supports Dual Mode Bluetooth 2.1, 2.1+EDR, 3.0, 4.0,BLE,4.2, 5.0, 1 x M2_3 slot with E key (Wi-Fi mode)

I/O

PS/2 Combo Port, DisplayPort, Wi-Fi / Bluetooth, LAN, HD Audio Connectors, Flash BIOS Button, USB 2.0, HDMI, USB 3.2 Gen1, USB 3.2 Gen2 (Type A+C), Optical S/PDIF OUT

Expansion Slots

1x PCIe 3.0 x 16 slot (PCI_E1), Supports x 16 speed with 1st, 2nd and 3rd Gen AMD Ryzen processors, Supports x 8 speed with Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors, Supports x 4 speed with Athlon with Radeon V

OS

Support for Windows 10 64-bit, Support for Windows 7 64-bit

Connectors

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x 4-pin ATX 12V power connector, 6 x SATA 6Gb/s connectors, 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports), 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Ge

Memory type

4 x DDR4 memory slots, support up to 128GB1, Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC), For AMD Ryzen Gen3 (R5/R7/R9), Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE) For AMD Other CPU, Supports 26

Storage

AMD B450 Chipset, 4 x SATA 6Gb/s ports, 1 x M.2 slot (M2_2, Key M)1, Supports PCIe 2.0 x4 2242/ 2260 /2280 storage devices, AMD CPU, 1 x M.2 slot (M2_1, Key M)2, Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd

Form factor

ATX Form Factor, 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

Graphics

1 x DisplayPort, supports a maximum resolution of 4096x2304 @60Hz, 2560x1600 @60Hz, 3840x2160 @60Hz, 1920x1200 @60Hz1, 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz2

Chipset

AMD B450 Chipset

CPU's supported

Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
