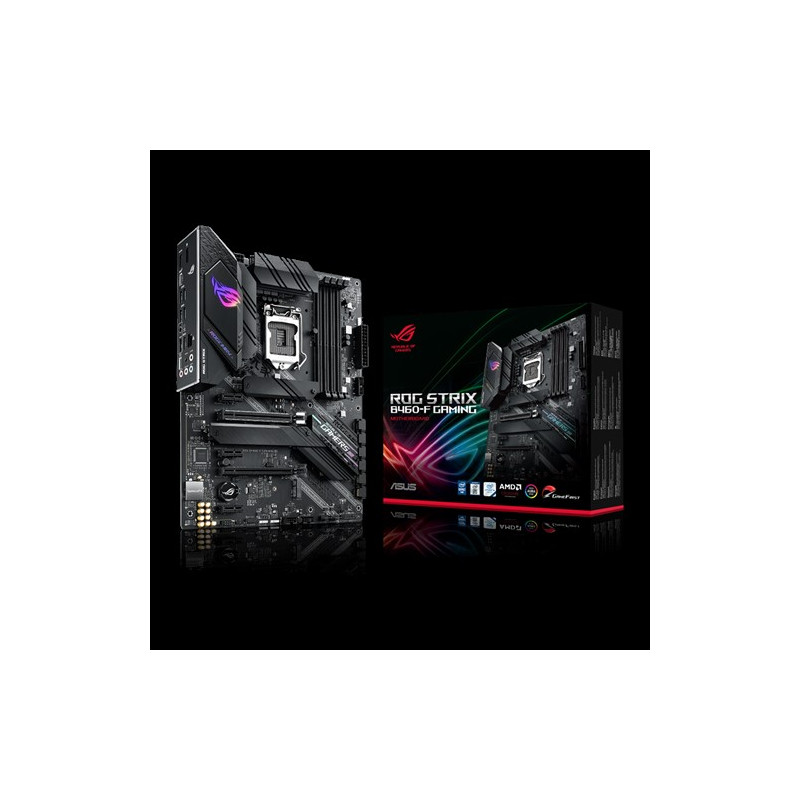

ASUS ROG STRIX B460-F GAMING

Техническо описание

Warranty

36 Months

LAN

Intel I219-V 1Gb Ethernet, ASUS LANGuard

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC, - Dual OP Amplifiers, - Impedance sense for front and rear headphone outputs, - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, - High quality 120 dB SNR stereo playback

Other

M.2 slot only (Key E) (Support PCIe interface), Wi-Fi module is sold separately.

I/O

1 x Intel I219-V 1Gb Ethernet, 1 x DisplayPort, 1 x HDMI, 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C), 6 x USB 3.2 Gen 1, 1 x USB 2.0 (1 for audio USB Type-C), 5 x Audio jack, 1 x USB BIOS FlashBack Button(s)

Expansion Slots

Intel 10th Gen Processors, 1 x PCIe 3.0 x16, Intel B460 Chipset, 1 x PCIe 3.0 x16 (x4 mode) 1, 3 x PCIe 3.0 x1 2

OS

Windows 10 64-bit

Connectors

1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x AAFP connector, 2 x Aura RGB Strip Headers, 2 x Addressable Gen 2 header(s), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additiona

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Memory type

4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory , Dual Channel Memory Architecture, Supports Intel Extreme Memory Profile (XMP), OptiMem

Storage

Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports, Intel B460 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA - PCIE 3.0 x 4 mode)3, 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices

Form factor

ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Graphics

Integrated Graphics Processor, 1 x DisplayPort 1.4 , 1 x HDMI 1.4b

Chipset

Intel B460

CPU's supported

Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors, Supports Intel 14 nm CPU, Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
