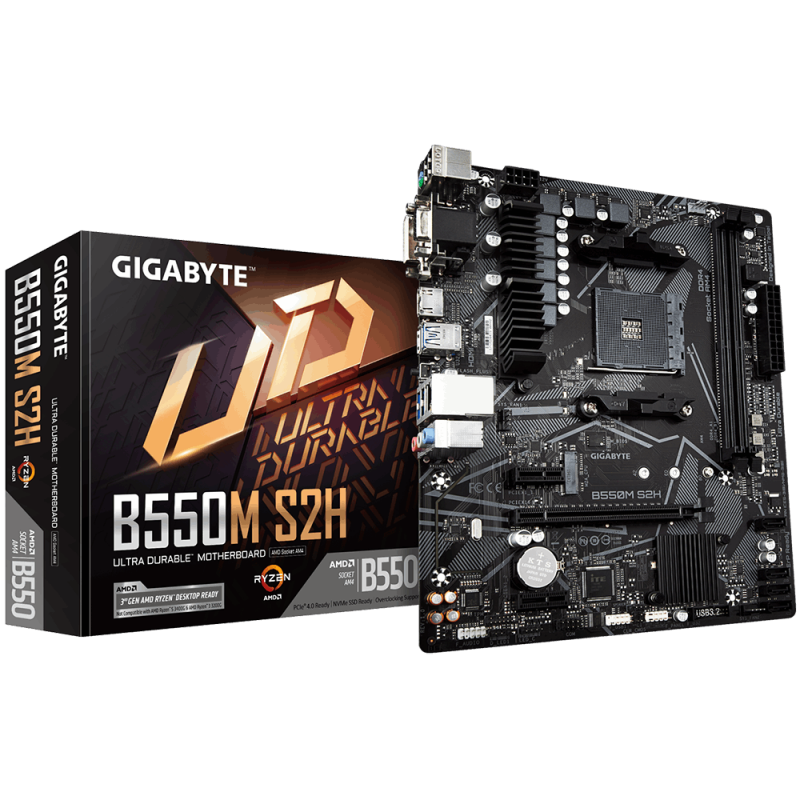

GB B550M S2H

Техническо описание

Warranty

36 Months

LAN

Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Audio

Realtek ALC887 codec, High Definition Audio, 2/4/5.1/7.1-channel

I/O

1 x PS/2 keyboard/mouse port, 1 x D-Sub port, 1 x DVI-D port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks

Expansion Slots

1‎ x PCI Express x16 slot, integrated in the CPU: 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode, 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode, 2 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2), integrated

OS

Support for Windows 10 64-bit

Connectors

1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 2 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 1 x M.2 Socket 3 connector, 4 x SATA 6Gb/s connectors, 1 x front panel header,

BIOS

1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory type

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory, 3rd Gen AMD Ryzen Processors: Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/266

Storage

1‎ x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs, 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x

Form factor

Micro ATX Form Factor, 24.4cm x 20.5cm

Graphics

Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz, 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz,The DVI-D port does not support D-Sub connec

Chipset

AMD B550

CPU's supported

AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon Graphics processors
