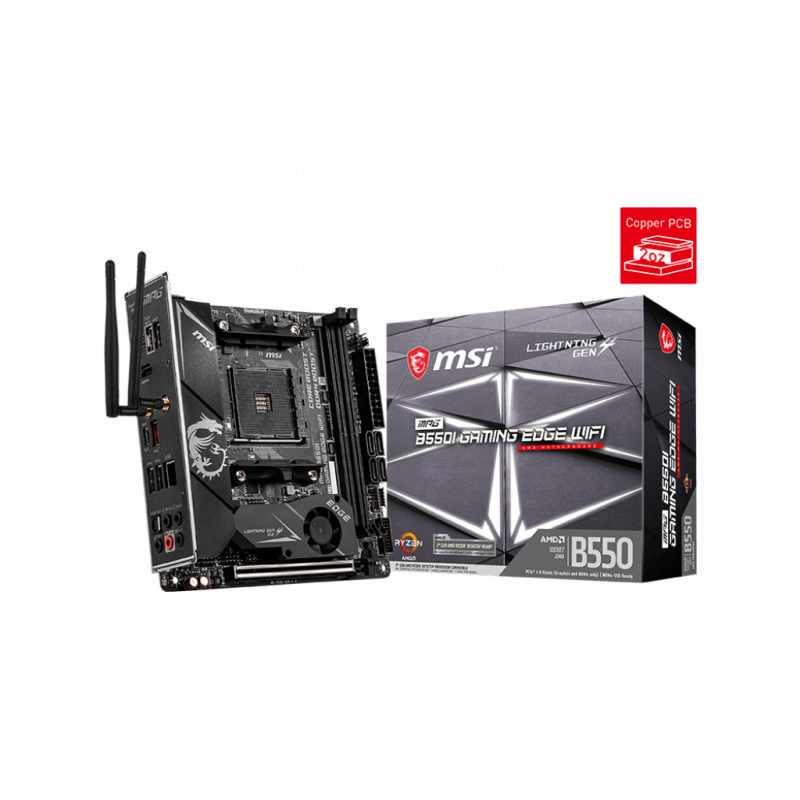

MSI MPG B550I GAMING EDGE WIFI

Техническо описание

Warranty

36 Months

LAN

1x Realtek RTL8125B 2.5Gbps LAN controller

Audio

Realtek ALC1200 Codec, 7.1-Channel High Definition Audio, Supports S/PDIF output

Other

Intel AX200, The Wireless module is pre-installed in the M.2 (Key-E) slot, Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth 5.1

I/O

USB 2.0, Wi-Fi / Bluetooth, USB 3.2 Gen 2 10Gbps (Type-A), LAN Port, HD Audio Connectors, Flash BIOS Button, PS/2 Combo Port, HDMI Port, USB 3.2 Gen 2 10Gbps (Type-C), USB 3.2 Gen 1 5Gbps (Type-A), Optical S/PDIF OUT

Expansion Slots

1x PCIe 4.0/ 3.0 x16 slot 1

Connectors

1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector, 4x SATA 6Gb/s connectors, 2x M.2 slots (M-Key), 1x USB 3.2 Gen 1 5Gbps Type-C port, 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports), 1x USB 2.0 connec

Memory type

2x DDR4 memory slots, support up to 64GB 1, Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC, Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4466/ 4533/ 4600+ MHz by A-XMP O

Storage

AMD B550 Chipset, 4x SATA 6Gb/s ports, 2x M.2 slots (Key M), M2_1 slot (from AMD Processor), Supports PCIe 4.0/ 3.0 x4 1, Supports SATA 6Gb/s, Supports 2260/ 2280 storage devices, M2_2 slot (from AMD B550 chipset), Supports PCIe 3.0x4, Supports 2280 stora

Form factor

Mini-ITX Form Factor, 6.7 in. x 6.7 in. (17.0 cm x 17.0 cm)

Graphics

1x HDMI 2.0/ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz1, Maximum shared memory of 16GB

Chipset

AMD B550 Chipset

CPU's supported

Supports AMD Ryzen 5000 - 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G - Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors
